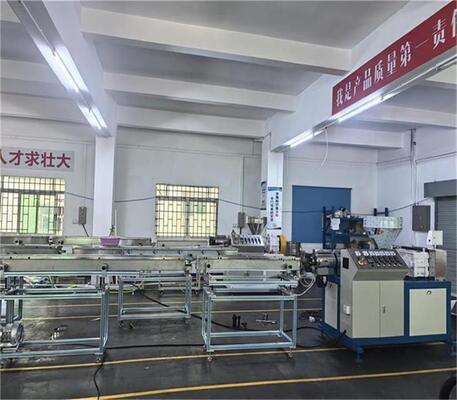

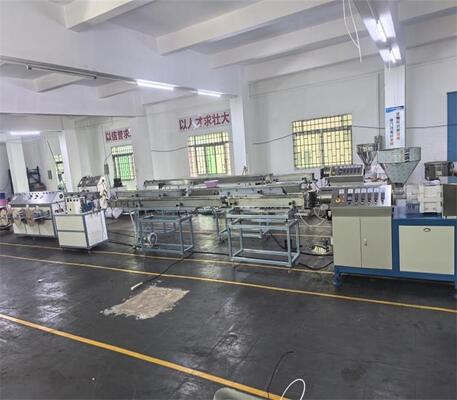

PFE-50D Automatic Plastic PVC Spiral Coil Binding Wire Extruder Machine PVC Plastic Filament Extrusion Line for Book Binding

PFE-50D Automatic Plastic PVC Spiral Coil Binding Wire Extruder Machine PVC Plastic Filament Extrusion Line for Book Binding

Superior Filament Quality: Experience perfect filament geometry. The PFE-50D guarantees excellent roundness with a minimal error of just ±0.02mm. This consistency is crucial for applications requiring precise dimensions and reliable performance, enhancing the quality of your end products.

Revolutionary Diameter Control – No Mold Changes! Say goodbye to costly downtime and inventory of multiple screw molds. Our innovative technology allows you to produce filaments from 1.3mm to 3.5mm simply by adjusting the speeds of the extrusion and winding parts. This flexibility lets you respond swiftly to custom orders and varying production needs without interruption.

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine:

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Specifications:

PVC Plastic Wire Diameter :1.3mm-3.5mm

Screw Rod Diameter:40mm

Working Speed Diameter 40mm:15-20kg

The No.of Heating elements:9pcs

L/D Ratio of screw:0.1:25

Material of Extrude Barrel&Screw:38CRMOAIA

Machine Dimension:6.2*0.91*1.55m

Power Supply:380V/3ph/50Hz

Total Power: extruding parties 7.5kw, draft gear:0.75kw

Winder:1.2kw Heating parties:8kw(each kilogram materials cost 0.9°c electricity)

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Advantages:

1:Working Speed up to 20kg/hour

2:Convenient Debugging

3:Adjusting extruding and winding speed to change wire diameter

4:Perfect roundness of extruded wire and stable wire diameter to promote forming production rate and ensure quality of plastic spiral

5:Non-trained operators can grasp the skill in a short period

PFE-50D Double Head Rewinding PVC Plastic Filament Extrusion Machine Main electric appliance:

Transducer:Delta

Motor:Pure copper wire Motor

Water tank:Heat and Cold water tank both are 304 stainless steel

Extruding machine mold head :S136 Stainless steel

Heating Control :Solid state relay

I-beam take-up reels may be supplied as required (quantity subject to customer specifications)

Package Size:Water tank :5.5*0.55*0.7m, Winder:1.3*1.2*1.45m

Wire drawer:1.75*0.9*1.33m

Gross Weight:1400kg

Extra Option choice at extra cost:1:50kg Mixing ingredients machine

2:Small Size waste materials recycling shredder
