| Item: | Single Loop Spiral Coil Punching Binding Machine | Model: | DWM-400 |
|---|---|---|---|
| Max Binding Size: | 400x500mm | Min Binding Size: | 120x80mm |
| Size Of Spiral: | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" | Thickness Of Punch For One Time: | 1-6mm |
| Max Punching Times For One Book: | 5 Times | Max Punching Thickness: | 13mm(special Product 16mm) |
| Working Speed: | 800-1800 Books/hour | Pitch: | 5:1 4:1 3:1 6mm 8mm |
| High Light: | automatic spiral punching machine,spiral binding hole punching machine |
||

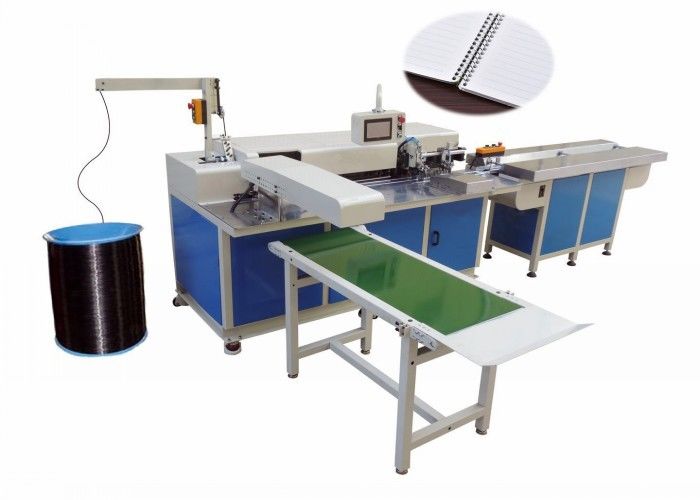

DWM-400 Full Automatic Multifunction Single Loop Spiral Coil Forming Binding Punching Machine
Single Loop Spiral Coil Forming Punching Binding Machine's advantage:
1. the machine only need one general man to operate
2. High quality of punch mould,it can punch at most 3-6mm,which can add the coil automatic.one mould has two sides with two
sizes of hole,which can makes the mould can be used for 3-5 times of life than the normal mould
3 . It just need one minute to change the mould size
4. The machine can positioning the hole automatically
5. Automatic remind the malfunction
Automatic Metal Single Spiral Coil Punching And Binding Machine was researched and developed for the first time in
China.the machine has above eight items of patent for invention,which can improve the efficiency above 60%.it can
Produce the product at high speed, such as notebook,instruction and so on. the machine can automatic feed the book
automatic punch one boo several times,automatic adjust the hole,automatic bind,automatic form the spiral,automatic
receive the book
Automatic Metal Single Spiral Coil Punching And Binding Machine can punch form the single loop coil and bind together.it
Works very fast and stable ,it can do three process with high speed at the same time.auto-separete book,auto-punch,auto-
Place book,auto-forming single loop coil,auto-binding the book. it is suitable large quantity ,use for sketch book,single spiral
book,student notebook and so on
Automatic Metal Single Spiral Coil Punching And Binding Machine's specification:
| Item | Automatic Metal Single Spiral Coil Punching And Binding Machine |
| Model | DWM-400 |
| Working Speed | 800-1800 books/hour |
| Thickness of punch for one time | 1-6mm |
| Max Punch thickness | 13mm(special product 16mm) |
| Max Punching times for one book | 5 times |
| Max book size | 400(bind side)x420mm |
| Min book size | 100(bind size)x140mm |
| Max book size for feed belt | 400x400mm |
| Size of Spiral | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" |
| Pitch | 5:1 4:1 3:1 6mm 8mm |
| Size of book for binding | 100-400mm |
| Air Compressor(customer provided for self) | 3kw |
| Machine Size | 4*2.5*1.6m |
| Power | 220v/50Hz/60Hz/6KW |
| Air Pressure | 7-8 bar |
| Machine Weight | 1250kg |
Our factory mainly produce two party of after printing products:
1: After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine,
automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil
forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.
Mylar Tab Lamination Machine
2: Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger
Plastic Binding Comb
