Home ProductsDouble Loop Wire Binding Machine

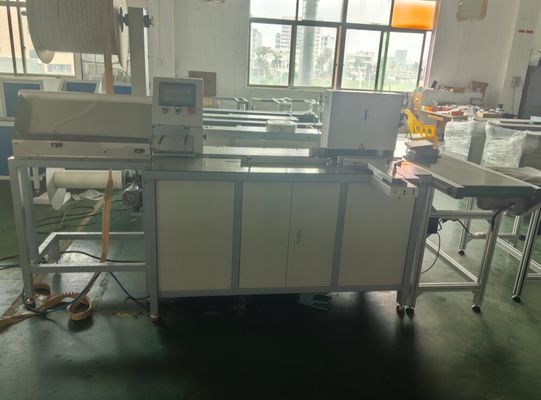

390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine

390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine

390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine
390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine
video play

Large Image :  390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo
Certification: CE
Model Number: WNB-420
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one pc packed in carton, then packed in wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set for 10 days
Detailed Product Description
Model Number: WNB-420 Working Speed: 800-1500 Books/hour
Air Pressure: 5-8bar Binding Capacity: 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" (no Need To Change Binding Size Mold)
Max Binding Length: 420mm Power Supply: 1PH 220v 50/60Hz
Main Machine Size: 1.95x1.27x1.25m Feed Reel Size: 0.8x0.45x1.06m
Brand Name: Nanbo W.A/Wechat: 8613431348359
Conveyor Size: 2.16x0.37x0.7m Net Weight: 300kg
High Light:

Double Loop Wire Binding Machine

,

Semi Automatic Wire Binding Machine





390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine







WNB-420 semi automatic binding machine is widely used for binding double loop wire notebooks, desk calendar etc. It can bind from size 114" to 1 41/4" without changing the binding tools. It will cut, convey and close the wire then drop on a conveyor. It increases the

production efficiency and lowers the cost remarkably.







Double Wire Binding Machine is used for binding double loop wire books,notebooks,wall calendars etc.it can bind 1/4" 5/16" 3/8"



7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" without changing Size binding molds.with the integration of automatically unwinding the spool. loops



Cutting,conveying and closing.it increased the production efficiency and lowered the cost remarkably











Double Wire Binding Machine 's Feature:



Model Number WNB-420

Working Speed

800-1500 books/hour

Air Pressure

5-8bar

Binding Capacity

1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" (no need to change binding size mold)

Max Binding Length

420mm

Power Supply

1PH 220v 50/60Hz

Main Machine Size

1.95x1.27x1.25m

Feed Reel Size

0.8x0.45x1.06m

Conveyor Size

2.16x0.37x0.7m

Net Weight

300kg





390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine 0



Double Wire Binding Machine 's advantages:





1: can bind book width 70-360mm

2: machine has auto error reminder function



3: can bind notebook speed up to 1000 books per hour

4: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" pitch 3:1 &2:1 with one machine no need change mould



5: Multi language interface design according to customer requested

6: Automatic transmission books,and allow workers to easy operate

7: the actuating element of the machine to switch to new side type to ensure long life and stability











Double Wire Binding Machine is Controlled by PLC,easy to set and adjust.there are no binding size molds to change as the closing



press is adjustable for all the diameters.and also Spiral Wire Binder machine especially suitable for binding the notebooks which the cover



is bigger than inner sheet.







390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine 1





390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine 2





390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine 3



390 MM Semi Automatic Looseleaf Detachable Spiral Notebook Binder Double Loop Wire Binding Machine Coil Binding Machine 4



















Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.



2.What about shipping date?



Usually take 10 days, but the actual shipping date is depending on your order quantity.



3.What about your quality?



All machines are fully checked before packing. After you received machine, if you have any question please contact us freely, we will reply you immediately.



4. Can be 3/4'' used for this machine?



Yes, the binding is from 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/4" (no need to change binding size mold)





5. What's the working speed of this binding machine?





800-1500 books/hour, it works very fast.









Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.

Mylar Tab Lamination Machine,Glue Perfect Binding Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger

Plastic Binding Comb

Our company advantages: we can supply after printing all kinds of full binding system:



1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture



double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.



2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil



and binding notebook at the same time



3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.





Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after



you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small



problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your



company help you to solve.Warmly welcome you call us



PS: We have many different kinds of machines, they are widely used for paper notebook binding, if you have any requrement please kindly email at tina@nanbobinding.com or wechat or whatsapp 008613431348359
