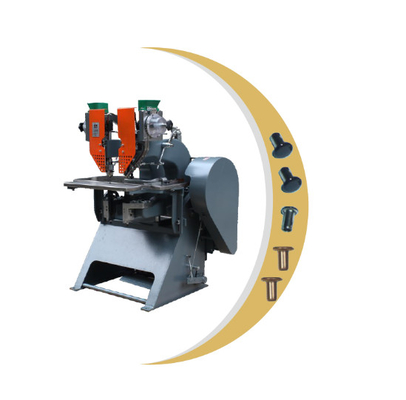

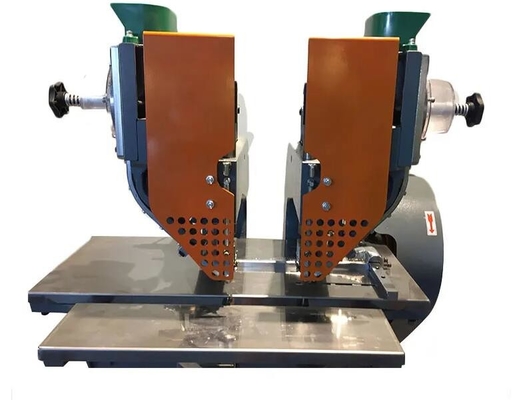

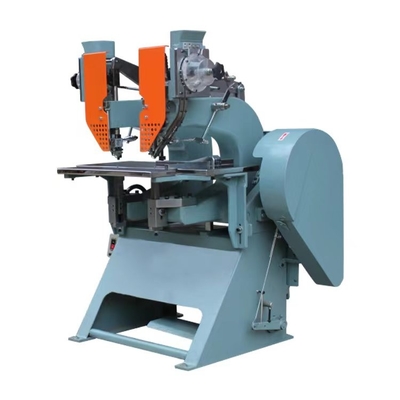

3/4HP Double Head Riveting Machine For Lever Arch File Clip Making Riveting Equipment



Double Head Riveting Machine For Lever Arch File Clip Making Riveting Equipment







Two spindle riveting at one action; Adjustable distance between two rivets ( 35-365 mm )



1. Distance between both heads can be adjusted. Adjustable distance between two eyelets/rivets ( 35-365 mm )

2. Two spindle riveting at one action. Both heads are bound at the time which can improve working efficiency

3. The machine can automatically punch or continuously punch and fix eyelets

4. The punching and eyeleting can finish once

5. The riveted eyelet are neat, beautiful and ametabolic

6. Easy operation and reliable performance

7. The efficiency is 8-15 times of manual operation

8. Adopt a turntable for dividing materials. Rail conveying automatic feeding

9. The body is made of cast iron. Low noise and good shock-absorbing ability. The function is simple for workers to adjust and use.

10. It is 2-hole riveting at a time. It makes high working efficiency and save working time during a cycle. Moreover, the size and shape of bottom rivet holder can be customized.

11. Top and bottom pieces of the die sets made using optimum mold steel features high durability.

12. Mechanical clutch eusures high operational stabiloty.

13. Lower base can be custom made to adapt to workpieces with different shapes of ring mechanisms or lever arch mechanism









Double Head Riveting Machine detailed information:





Model	JZ-936SH
Item	Double Head Riveting Machine
Rivet head diameter	6-12 mm
Rivet diameter	2.5-4.5 mm
Rivet length	5-18 mm
Head central distance	35 ( updated ) - 365 mm
Throat depth	440 mm
Power	3/4HP
Height from floor to bottom mold	850 mm
Machine size	1030 x 1140 x 1420 mm
Net weight	430 kg
Gross weight	565 kg























About shipping







1.We can shipping out goods via express( DHL, fedex, TNT, UPS), air shippment and sea shippment. Its all depends on your order quantity.



2.Fast delivery, machines can be shipped out in 10 days after you placed order.



3.Good packing. All big size machines are packed with wooden case so that they are good for long time transportation.











Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.





2.What about your quality?



All machines are fully checked before packing. After you received machine, if you have any question please contact us freely, we will reply you immediately.



3.What's the Rivet diameter?



2.5-4.5 mm





4.What's the Rivet length?





5-18 mm









Our advantage:





Dongguan NanBo Mechanical Equipment Co.,Ltd have below advantage:





1. Various punching, binding, Mylar Tab lamination machine and forming machines can be choosed.



2. Factory price with super quality.



3. Safe packing and fast shippment.



4. Excellent communication with best aftersales service.

















About US





Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb









Our company advantages: we can supply after printing all kinds of full binding system:



1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.



2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time



3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.





Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us





PS: We have many different kinds of machines, they are widely used for paper notebook binding, if you have any requrement please kindly email at tina@nanbobinding.com or wechat or whatsapp 008613431348359
