Notebook Newspaper Numbering Fast Speed Paper Counting Equipment Paper Numbering And Marking Machine





Notebook Newspaper Numbering Machine Fast Speed Paper Counting Equipment Paper Numbering And Marking Machine

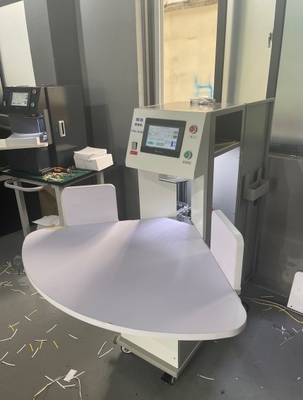

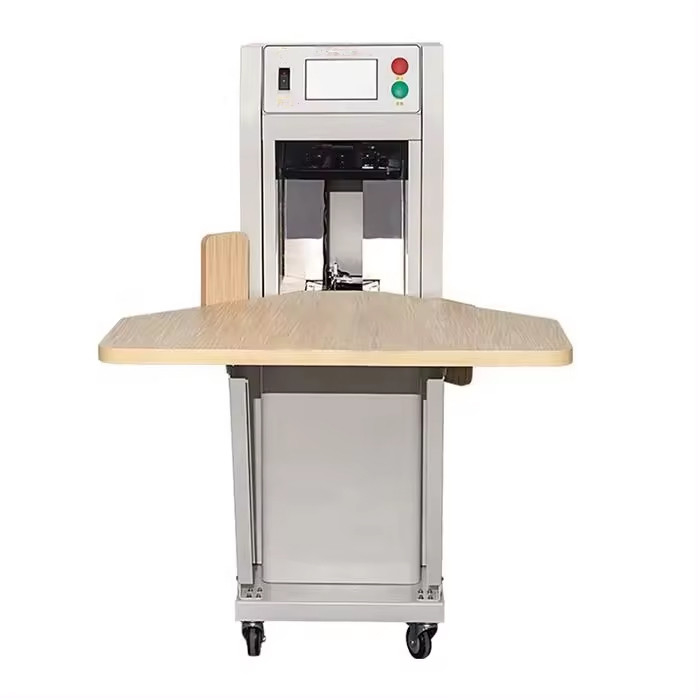

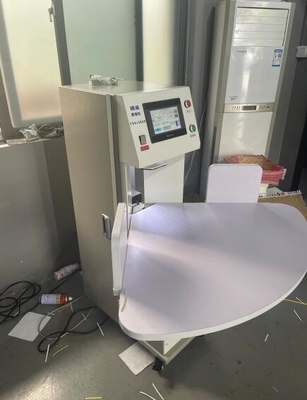

YSH-1600 paper counting machine detailed information:



Model	YSH-1600
Name	Paper Counting Machine
Paper counting speed	2000 sheets/min
Adapt to paper range	25g/m2-210g/m2
Suitable for paper size Maximum	546 L x 788 W mm
Suitable for paper size Minimum	100 L x 150 W mm
Insert sign	Every 2-1000 sheets
Maximum stack height	250 mm
Electric source	AC 240VAC 50/60HZ single phase Special voltage can be customized
Table Height	760 mm
Fuselage size	990 L x 900 W x 1330 H mm
Machine weight	108 kg
Packing wooden box size	105 L x 95 W x 148 H cm
Total Gross weight	160 kg





YSH-1600 paper counting machine is a full automatic paper counting machine composed of microcomputer controller and mechanical linkage mechanism. Its main functions and features are as follows:







The machine is mainly characterized by modularization, advanced microcomputer control system and unique mechanical design concept. The machine modularization is circuit, head, vacuum generator and frame. The machine runs stably and counts accurately. The parameter setting and function display are all on the touch screen, and the operation is simple, convenient and intuitive.

1: The alarm is monitored in real time and displayed on the touch screen at the same time, and the operation is clear at glance.

2: It is bilingual in English and Chinese, which can be converted to facilitate use in different regions.

3: The counting speed is fast, and the speed is 2000 sheets/min, which can be set arbitrarily. The counting speed can be displayed in real time.

4: Laber paper tape installation is more convenient and fast.





There are four operation modes: counting paper mode, equal quantity mode, programming mode and comparison mode. These four modes can be converted arbitrarily.



1. Counting and counting paper mode: This mode is a simple counting function. If this mode is selected, the machine will not insert the sub volume function.



2. Programming mode: this mode is the function of unequal volumes, that is, the number of inserted and signed volumes of each volume is not equal. This cycle can be set ( 2-9 times ) by setting a group ( the number of volumes of 500 volumes can be set in each group ).



3. Equal quantity mode: the quantity of each volume, the number of inserted labels and the total number of papers can be set arbitrarily on the touch screen and can be modified. The machine also has the functions of setting the initial parameters of the machine, such as label tape length, pressboard operation mode, date storage, high-speed and low-speed selection, etc.



4.Comparison mode: this function is used to check whether the quantity is correct. For example, if the input quantity is 100 sheets, the machine will automatically alarm if there are less than 100 sheets after counting.































About shipping





1.We can shipping out goods via express( DHL, fedex, TNT, UPS), air shippment and sea shippment. Its all depends on your order quantity.



2.Fast delivery, machines can be shipped out in 10 days after you placed order.



3.Good packing. All big size machines are packed with wooden case so that they are good for long time transportation.











Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.







2.What's the paper counting Speed of machine?





2000 sheets/min





3.What's the Adapt to paper range?





25g/m2-210g/m2





4. What's the Maximum stack height?





250 mm











Our advantage:





Dongguan NanBo Mechanical Equipment Co.,Ltd have below advantage:





1. Various punching, binding and forming machines can be choosed.



2. Factory price with super quality.



3. Safe packing and fast shippment.



4. Excellent communication with best aftersales service.

















About US





Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb









Our company advantages: we can supply after printing all kinds of full binding system:



1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.



2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time



3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.





Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us





PS: We have many different kinds of machines, they are widely used for paper notebook binding, if you have any requrement please kindly email at tina@nanbobinding.com or wechat or whatsapp 008613431348359
