Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm
Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm
video play

Large Image :  Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo
Certification: CE
Model Number: NB-320
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one pc packed in carton, then packed in wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set for 10 days
Contact Now
Detailed Product Description
Model Number: NB-320 Item: Catolog Cutting Corner Machine
The Effective Length Of The Cut Angle: 320mm Maximum Paper Cutting Thickness: 1mm
Angle Cutting Speed: 110-140 Times/min Deceleration Ratio: 1.3 Mm
Motor Power: 370w/380V 1400r.p.m. Weight: 220kg
Machine Size: 30x80x120cm Function: Corner Cutting
High Light:

Brochure Paper Index Cutting Machine

,

Index Cutting Machine 140 Times / Min

,

1400rpm Index Tab Cutting Machine



Notebook Brochure Paper Index Cutting Machine Cutting Corner Machine







catolog cutting corner machine detailed information:





Item NB-320 catolog cutting corner machine
The effective length of the cut angle 320mm
Maximum paper cutting thickness 1mm
Angle cutting speed 110-140 times/min
Deceleration ratio 1.3 mm
Motor power 370w/380V 1400r.p.m.
Weight 220kg
Machine size 30x80x120cm
function corner cutting







Instruction manual Page 1





1. Overview:

NB-320 catalog corner cutting machine is a special equipment for paper corner cutting
in the printing industry.
It has the advantages of high efficiency, easy adjustment, and safe use, and is widely
used in factories and schools, other printing industries, the shape and structure of machine as below:

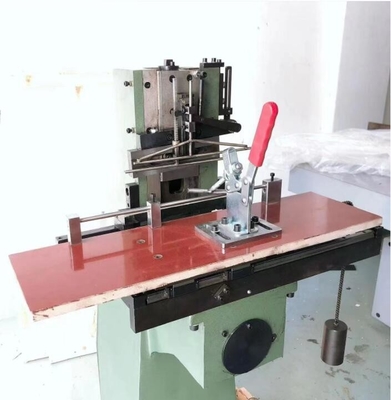

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 0

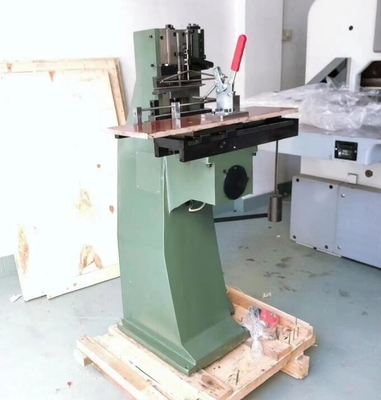

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 1

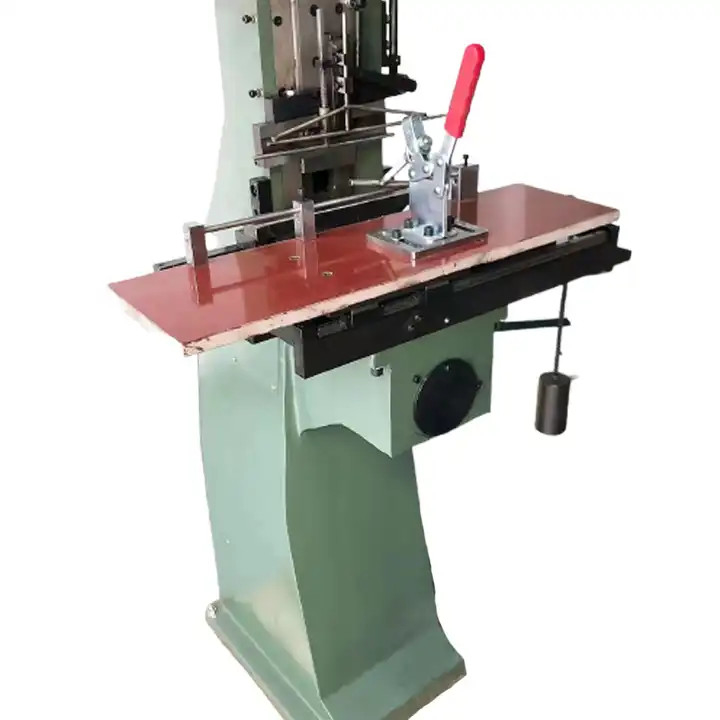

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 2





Instruction manual Page 2


2. Main technical parameters
(1) The effective length of the cut angle: 320mm
(2) Maximum paper cutting thickness: 1mm
(3) Angle cutting speed: 110-140 times/min -
(4) Deceleration ratio: 1.3mm
(5) Motor power: 370w/380V 1400r.p.m.
(6) Weight: 220kg
(7) Machine size: 30x80x120cm


3.Installation and test run:





The placement of the machine must be balanced, and then press the front of the
machine counterclockwise (as shown in Figure)
2). The movable cover (1) rotates and passes through the groove of the stopper (2) to
the stopper pin (3). When the movable cover (1) presses down the switch contacts
under the slot of the stopper (2), the power supply of the whole machine is cut break
Insert the handle (random accessories) into the shaft head in the hole, and the
machine can be operated manually move.
lf there is no abnormality, put back the movable cover (1) (must be put back),
otherwise the machine will unable to start.





Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 3



Instruction manual Page 3
The one-time adjustment of this machine is completed at the factory, you need to
adjust it during use, please press the following
4. Adjustment: The method is carried out.
4.1, Adjustment of the upper blade: (as shown in Figure 3)
1. Sliding board «
2. Locking screws
3.Adjusting screws
4. Screw one

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 4
Figure 3)
The upper blade of this machine and the skateboard are connected by a screw as a
whole, and the best position of the upper blade .The position should be such that the
highest position of the upper blade edge intersects the lower blade edge when itis at
its lower limit position. Wrong 1-2mm, when adjusting, remove the locking screw (2)
and turn the adjusting screw (3), You can move the upper blade up or down (the
rotation of the adjustment screw is 90°,
one stop), Then install the locking screw (2) and tighten it.
4.2. Adjustment of the height of the paper bar: (as shown in Figure 4)
Loosen the upper screw (4) of the slider (2) and move the paper bar (3) up and down
to satisfaction’
The position, (The best position of the paper pole: when the paper pole is in the lower
pole position, it should be in 2-3mm below the blade of the lower blade), then tighten
the screws (4)
4.3. Adjustment of workbench motion indexing

Instruction manual Page 4
When you need to change the indexing spacing of the wok movement you need to
remove the workbench and replace the workbench, Just make the rack under the stage.
4.4, Adjustment of the skateboard: (as shown in Figure 3)
When the power is cutoff, the skateboard (1) should not move freely. When this
requirement is not met, the skateboard (1) should not move freely.
The screw (4) can be fine-tuned so that it does not fall freely at any position and its
movement resistance. It can't be too big.
4.5. Adjustment of working speed: (as shown in Figure 5) '
The working speed of this machine is achieved by changing the radius of rotation of
the motor pulley, Its speed control handle (1) is at the bottom right of the machine.
Method: Turn the adjustment counterclockwise.
Speed handle (1) (release the motor board locking block at this time), move the handle
up and down. For the growth rate, the downward movement is the deceleration, until
the satisfactory speed is reached, then tighten the handle to it can.
46. Adjustment of the limit parking position on the upper blade: (As shown in Figure 6)
The limit parking position on the upper blade must be the highest position of the upper
blade in a movement cycle (The
adjustment part is in the cavity of the protruding part of the machine under the
workbench, from the iG lower part.

Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 5
Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 6



Instruction manual Page 6
It is controlled by the cam stroke switch. When the above requirements are not met,
the adjustment method is needed.
The method is as follows: use manual to raise the upper blade to the highest point,
loosen the screw (1) and turn the convex wheel, so that it slowly contacts the contacts
of the stroke switch (3) when you hear the stroke switch "pop’, when there is a sound,
it means that the cam is in place, just tighten the screw (1), this step can be repeated
many times until you are satisfied.
5. Maintenance and maintenance:
5.1. The parts of this machine that have relative movement must be lubricated
regularly.
5.2. When using manual rotation of the machine, the activity must be carried out in
accordance with the method shown in Figure 2. The moving cover turns to the limit
position, causing the machine to cut off the power supply.
5.3. The repair and adjustment of the machine must be carried out by professionals.





About shipping







1.We can shipping out goods via express( DHL, fedex, TNT, UPS), air shippment and sea shippment. Its all depends on your order quantity.



2.Fast delivery, machines can be shipped out in 10 days after you placed order.



3.Good packing. All big size machines are packed with wooden case so that they are good for long time transportation.











Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.





2.What about your quality?



All machines are fully checked before packing. After you received machine, if you have any question please contact us freely, we will reply you immediately.



3.What's the Angle cutting speed?



110-140 times/min





4.What's the effective length of the cut angle?





320mm







Our advantage:





Dongguan NanBo Mechanical Equipment Co.,Ltd have below advantage:





1. Various punching, binding, Mylar Tab lamination machine and forming machines can be choosed.



2. Factory price with super quality.



3. Safe packing and fast shippment.



4. Excellent communication with best aftersales service.









Notebook Brochure Paper Index Cutting Machine 140 Times / Min 1400rpm 7
