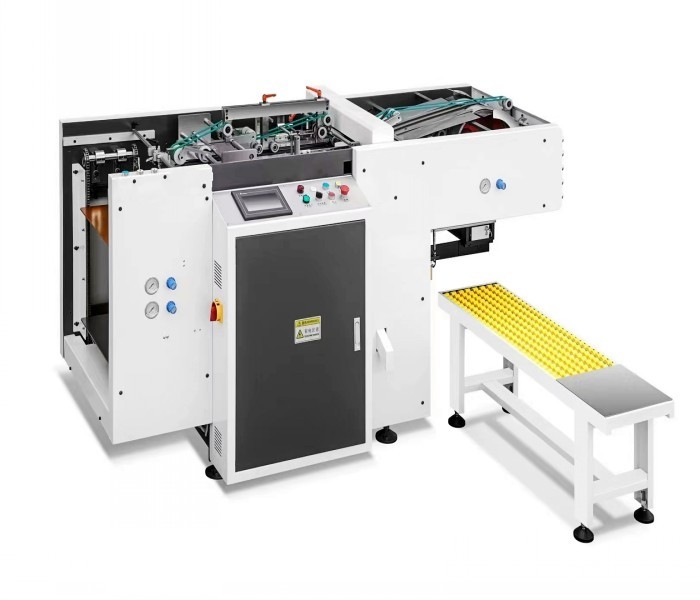

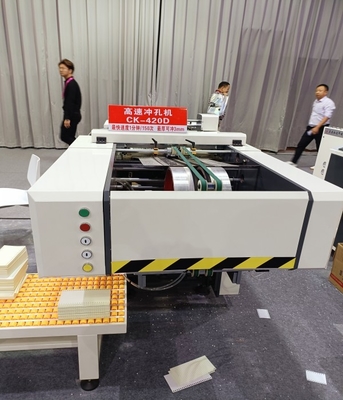

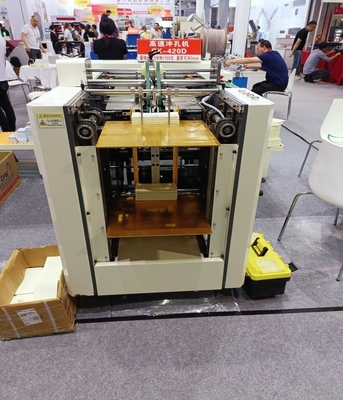

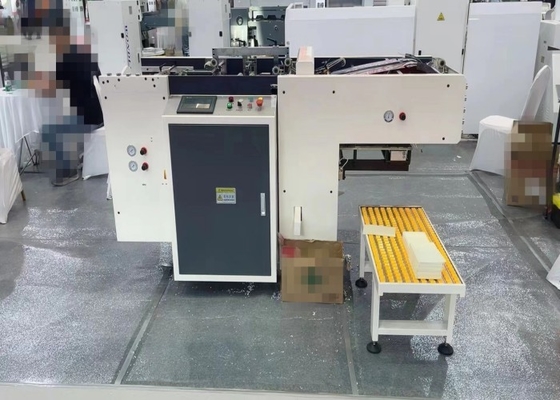

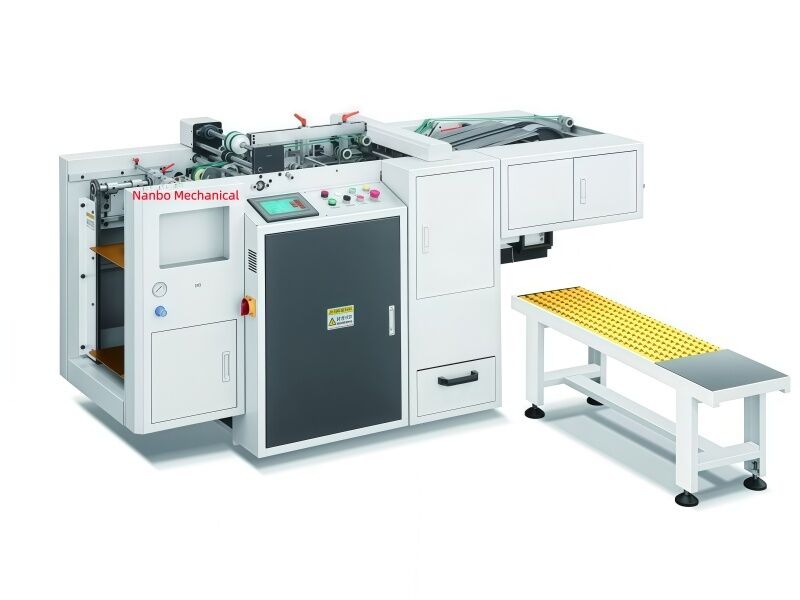

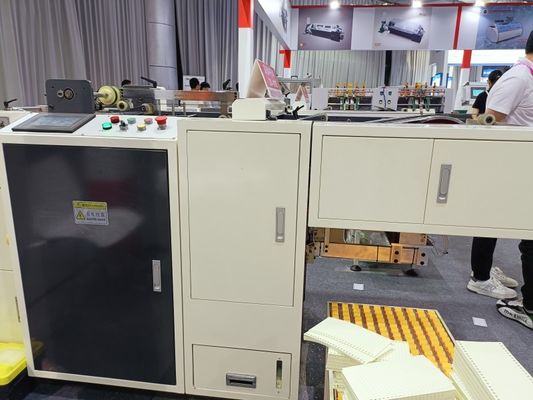

3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar

3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar

3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar
3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar
video play

Large Image :  3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo
Certification: CE
Model Number: CK-420D
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine package into one export wooden box, box 2.2x1.6x1.3m
Delivery Time: 20 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2 sets per month
Detailed Product Description
Keywords: High Speed Automatic Paper Punching Machine Max Paper Size: 420x4200mm
Min Paper Size: 70x100mm Max Paper Thickness: 3mm
Max Working Speed: 150 Times/minute Machine Dimension: 2.2m X 1.0m X1.3m
Power: 380v /3PH/50Hz /2.3Kw Weight: 900kg
Highlight:

3PH Automatic Paper Punching Machine

,

Hanger Calendar Automatic Paper Punching Machine

        CK-420D High SpeedAutomatic Paper Punching Machine Max Punching Thickness 3 mm one time

High Speed Full Automatic Paper Punching Machine Max Punching Thinckness 3mm One Minute 150 Times

Automatic High Speed Punching machine is paper and board punching special equipment,mainly used for desk calendar,Hanger calendar,notebook,book,exercise book,thin grey board,PP board Binding,PVC board Binding .can not used for metal board

and wooden board. this machine adopts step drive paper,thickness can be adjusted



  The Paper holding part adopts the wayof picking up and then inserting paper head,so that the paper surface should not be scratched to ensure the beauty and

  quality of the product. after taking the paper ,it is sent to the punching mold through the coveyor belt,and then the paper is adjusted on three          sides at the same time before punching.after punching ,the paper will automatically enter into the paper receiver according to the sequence of

   paper size and margins can be adjusted. holes of various shapes can be punched by changing the mold



Model# CK-420D



Max Paper Size

420*420mm

Min Paper Size

70*100mm

Max Paper Thickness

3mm

Max Punching Speed 150 times/minute
Power Requirement 380v/3ph/50Hz/3kw
Weight 900kg
Machine Size 2200x1000x1300mm
Compressed Air Pressure 3-6bar



3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 0





3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 1



3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 23PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 33PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 4

3PH 2.3Kw Automatic Paper Punching Machine For Hanger calendar 5





Our factory mainly produce two party of after printing products:

1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.

Mylar Tab Lamination Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger ,Plastic Binding Comb





Our company advantages: we can supply after printing all kinds of full binding system:

 1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.



2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

 and binding notebook at the same time.



3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.





Regards to our service:

After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

 you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve
