Product Details:
Payment & Shipping Terms:
|
| Goods Name: | NB-205 Double-head Hydraulic Flattening Machine For Hardcover Books | Max Binding Width: | 620mm |
|---|---|---|---|
| Speed: | 30-50 Times/minute | Voltage: | 0.75KW |
| Power Supply: | 380v/220v | Dimension: | 730*950*1040mm |
| G.W: | 200KG | Quality: | Durable Calendar Rimming Machine |
| Packing: | Wooden Box | Design: | Ndustrial |
| Other Machine: | Binding Machine, Punching Machine, Etc. | Color: | As Per Piectures |
| High Light: | Double Head Flattening Machine,Hardcover Books Flattening Machine,Hydraulic Flattening Hardcover Book Machine |
||

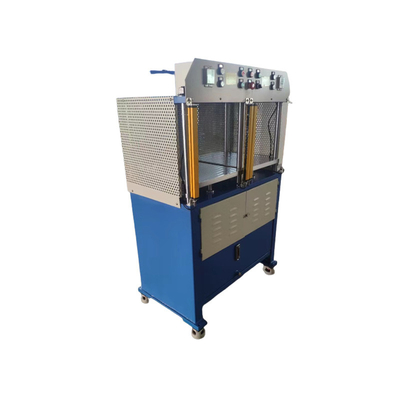

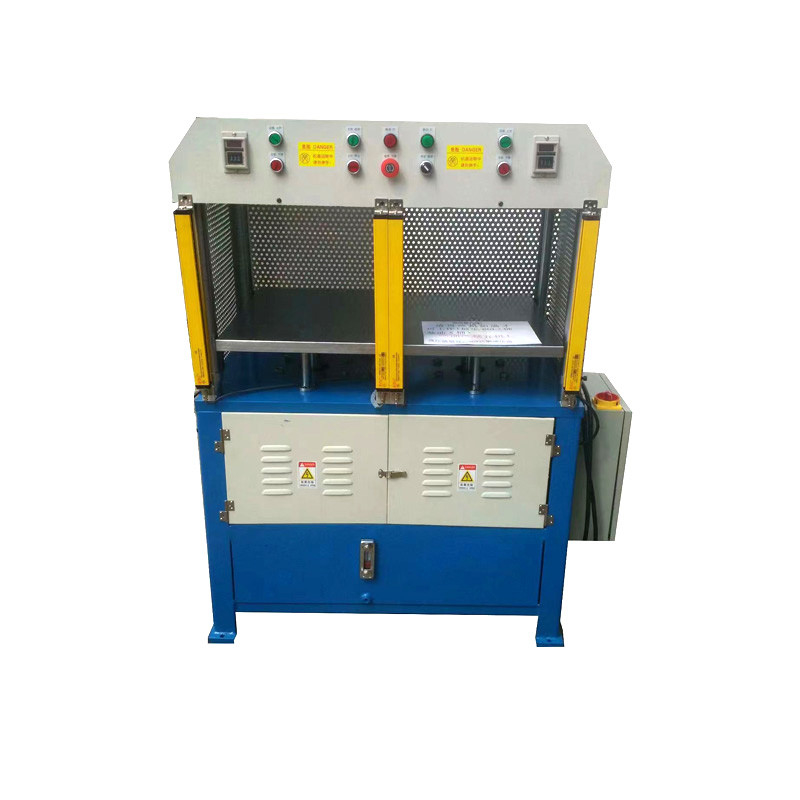

NB-205 Double-head Hydraulic Flattening Machine For Hardcover Books
Welcome to know more about our book hardcover flattering machine
| Model No. | NB-205 |
| Working Travel | 350mm |
| Area of Pressing Board | 550*400 mm (single side) |
| Book Thickness | 100-450mm |
| Power supply voltage | 380V, 3Phase |
| Min open Case Size | 140x140mm |
| Machine Dimensions | 1*0.6*1.3m |
| Motor supply | 3.7kw |
| Machine Net Weight | 600KG |
Working principle:
After the book block is put on the bookcase, although the front and rear covers are bonded to the ring lining, they are not firm and must be flattened to remove the air trapped between the lining and the book case, so that they are firmly bonded and flat. In addition, there is a lot of water in the glue between the ring lining of the book block and the book case, which forms a single-sided humidification effect on the ring lining and the bookcase. If the book is dried naturally, it will inevitably cause the book case to dry. Warped. In order to avoid this phenomenon, the compactness of the book should be enhanced, and the bond fastness between the ring lining, the back material gauze, and the bookcase should be increased at the same time, and the book case should be flattened immediately after the bookcase is put on. The method of flattening is to stack the books neatly and staggered according to the spine and front mouth, and place them on a flattening machine to press them tightly.
Application:
NB-205 double-head hydraulic flattening machine is suitable for shaping and flattening leather cases, hardcover books, etc. when they are just bonded. This machine adopts hydraulic pressure as the driving mode, and has the functions of adjustable pressure, adjustable book pressing time, adjustable stroke, and stop pressure maintenance. It has a double platen, and high efficiency; it has a simple structure, a beautiful appearance, and simple and convenient operation, it is the most ideal machine for all occasions that need to be flattened. And our company can customize flattening machines with various pressures or book pressing areas.
100% good raw material
100% direct factory price
100% quick after-sale service
Nanbo machinery aims to provide the best customer service all these years. We have done business with customers from all over the world for more than 15 years. If you want to visit our factory, welcome.
Our goods have passed the CE test and other professional testings. We can do the test for you if your local market requires them.
We supply binding consumables and machines in China and will finish all the goods in the shortest time.
We are responsible for the shipping too. If you have your shipping agent, we can deliver the binding materials, punching machines, or binding machines to them.
Let us know whether you have any questions. Please send me an email now.
The goods we can supply are listed below.
Welcome to place the order! Look forward to establishing a long-term business relationship with you and your company!
If you have an interest in these Calendar Rimming Machines, contact us directly.
If you are looking for other models or you just want other equipment to meet your special requirement, please let us know. Then we will help find out a solution.
After you order this machine and don't know how to use it. We will provide a video to show you how to operate it. If your machine doesn't work when receiving, just tell us the situation, our professional masters will help you solve it.
Customers always come first in our company. Hope to establish a solid business relationship with you!
