Product Details:
Payment & Shipping Terms:
|
| Goods Name: | NB-320 Catalog Index Cutting Machine | Series: | Paper Corner Cutting Machine |
|---|---|---|---|
| Test: | Passed | The Effective Length Of The Cut Angle: | 230mm |
| Maximum Paper Cutting Thickness: | 1mm | Angle Cutting Speed: | 110-140 Times/min |
| Deceleration Ratio: | 280mm | Min Paper Bending Size: | 1.3mm |
| Motor Power: | 370w/330V 1400r.p.m. | Machine Weight: | 220 Kg |
| Other Machine: | Binding Machine, Punching Machine, Etc. | Machine Size: | 30x80x120cm |
| High Light: | 140times/min Corner Cutting Machine,330V Corner Cutting Machine,Catalog Paper Corner Cutting Machine |
||

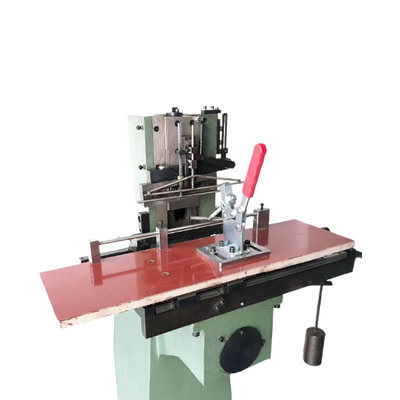

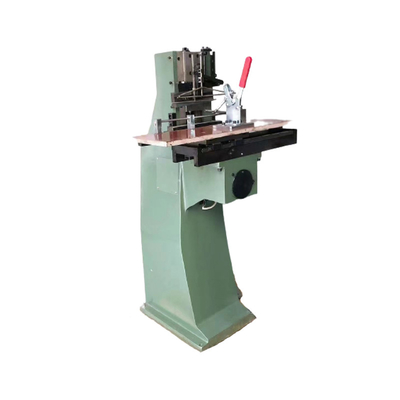

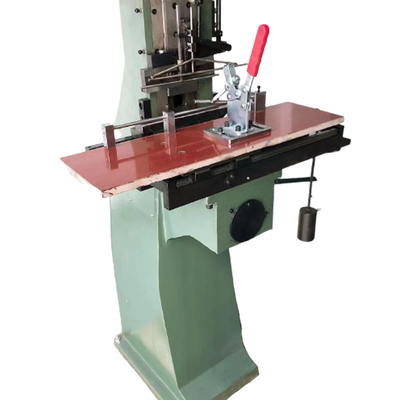

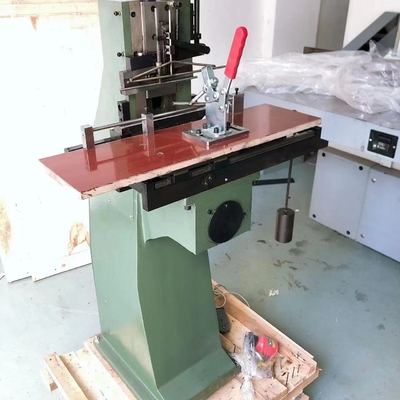

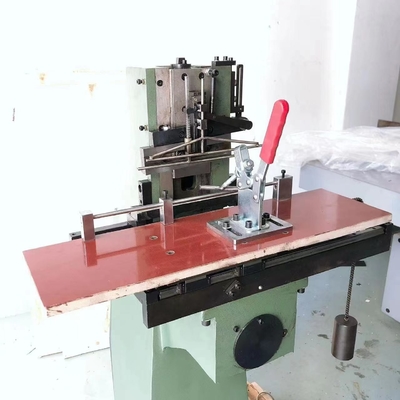

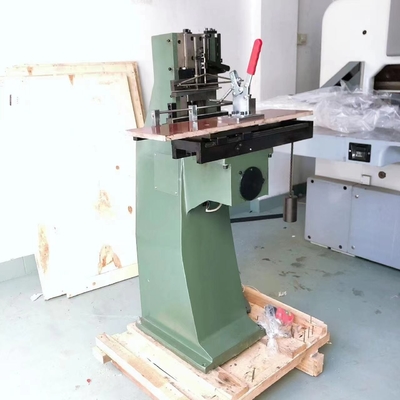

NB-320 School Notebook Corner Cutting Catalog Index Cutting Corner Machine
Details of the Catalog Index CuttingMachine
| Model No. | NB-320 |
|
The effective length of the cut angle |
320mm |
| Maximum paper-cutting thickness | 1mm |
| Angle cutting speed | 110-140times/min |
| Deceleration ratio | 1.3mm |
| Motor power | 370w/380V 1400r.p.m. |
| Machine size | 30 x 80 x 120 (cm) |
NB-320 catalog corner cutting machine is a special equipment for paper corner cutting in the printing industry.
It has the advantages of high efficiency, easy adjustment, and safe use, and is widely used in factories and schools, other printing industries The shape and structure are shown below:
Installation and test run:
The placement of the machine must be balanced, and then press the front of the machine counterclockwise (as shown in Figure)
2). The movable cover (1) rotates and passes through the groove of the stopper (2) to the stopper pin (3). When the movable cover (1) presses down the switch contacts under the slot of the stopper (2), the power supply of the whole machine is cut break Insert the handle (random accessories) into the shaft head in the hole, and the machine can be operated manually move.
lf there is no abnormality, put back the movable cover (1) (must be put back), otherwise the machine will unable to start.
The one-time adjustment of this machine is completed at the factory, you need to adjust it during use, please press the following
4. Adjustment: The method is carried out.
4.1, Adjustment of the upper blade: (as shown in Figure 3)
1. Sliding board «
2. Locking screws
3. Adjusting screws
4. Screw one
Figure 3)
The upper blade of this machine and the skateboard are connected by a screw as a whole, and the best position of the upper blade .The position should be such that the highest position of the upper blade edge intersects the lower blade edge when itis at its lower limit position. Wrong 1-2mm, when adjusting, remove the locking screw (2) and turn the adjusting screw (3), You can move the upper blade up or down (the rotation of the adjustment screw is 90°,
one stop), Then install the locking screw (2) and tighten it.
4.2. Adjustment of the height of the paper bar: (as shown in Figure 4)
Loosen the upper screw (4) of the slider (2) and move the paper bar (3) up and down to satisfaction’
The position, (The best position of the paper pole: when the paper pole is in the lower pole position, it should be in 2-3mm below the blade of the lower blade), then tighten the screws (4)
4.3. Adjustment of workbench motion indexing
Supplier: Nanbo, located in China.
Smallest order quantity: 1 piece
Application: Industrial PVC spiral coil binding
Machine series: Binding machine
The binding speed of this machine is 500 cycles to 700 cycles per hour, if this speed meets your binding requirement, then you can take this spiral coil machine directly and use it in your factory. This working speed is high and can help improve your working efficiency, it is worth trying.
This binding machine is made by our own factory, so we can ensure that you can get a high-quality plastic PVC spiral coil binding machine at a relatively competitive offer. You can compare the price from any Chinese supplier, then come back to us.
The goods we can supply are listed below.
Welcome to place the order! Look forward to establishing a long-term business relationship with you and your company!
If you have an interest in these coil crimping pliers, contact us directly.
If you are looking for other models or you just want other equipment to meet your special requirement, please let us know. Then we will help find out a solution.
After you order this machine and don't know how to use it. We will provide a video to show you how to operate it. If your machine doesn't work when receiving, just tell us the situation, our professional masters will help you solve it.
Customers always come first in our company. Hope to establish a solid business relationship with you!
Contact Person: Robert Luo
Tel: +8613712492952
