|Goods Name:||Single Spiral Coil Crimping Bending And Cutting Machine||Series:||Single Spiral Coil Crimping Machine|
|Test:||Passed||Design:||Industrial Binding Machinery|
|Air Source Standard:||Air Source Standard||Suitable Coil Size For The Machine:||3/8inch～1inch|
|Max Paper Bending Size:||280mm||Min Paper Bending Size:||80mm|
|Machine Size:||Length650xWidth400xHeight850（MM）||Machine Weight:||75 Kg|
|Other Machine:||Binding Machine, Punching Machine, Etc.||Market:||Asia, Africa, Europe, America, Mid East, Etc.|
Crimping Spiral Coil Machine,
280mm Spiral Coil Machine,
80mm Spiral Coil Binding Machine

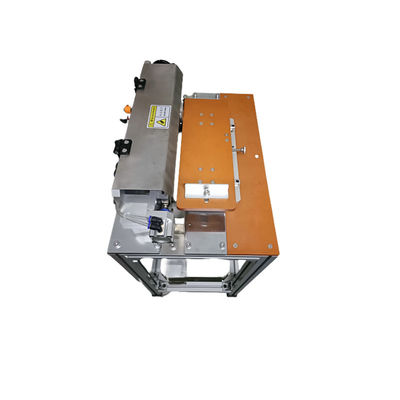

NB-260 Metal And Plastic Single Spiral Coil Crimping Bending And Cutting Machine
Details of the Spiral Coil Crimping Bending and Cutting Machine
|Air source standard||Air pressure: 0.5～0.6MPA|
|Suitable coil size for the Machine||15/6 inch -3/4 inch|
|Max Paper Bending Size||280mm|
|Min Paper Bending Size||80mm|
|N.W||Competitive factory price|
|Machine size||Length 650 x Width400 x Height850 (mm)|
1. Introduction NB-260 spiral coil bending machine, is a semi-automatic equipment based on the pneumatic operation. It is mainly used to cut off the excess parts at both ends of the coil at one time after the coil is inserted into the book hole, and then bend it and close it. So that the end of the coil is bent into the inside of the coil to avoid scratch
2. Main working principle and structure This machine is fully pneumatic operation, no need to connect to the power supply. Directly inserted into the trachea for air supply. The working principle is: Place the book with the coil on the working platform, and adjust the center distance of the left and right edges according to the width of the book. According to the diameter of the coil, adjust the height of the worktable to ensure that the center of the coil is consistent with the center of the knife edge. Quickly stepping on the foot switch, the machine can complete the work of cutting and bending.
1) After the machine is unpacked, first use the air intake pipe in the box to connect to the factory's air source, cut the cable tie, release the foot pedal, and place it in a suitable work area.
2) Place the book and adjust the height of the coil, the upper and lower heights can be between the forming block and the blade, and then lock the panel by lifting and locking screws. 3) Loosen the left and right width locking screws, turn the hand wheel 1, and adjust to a suitable position to lock the screws.
4) Loosen the baffle fixing screws on the work panel, and adjust the left and right reference baffles of the product to the appropriate positions.
5) Turn on the air source, lay the book flat on the placement panel, push it into the bending and shearing die against the product reference baffle, quickly depress the foot switch for about 1 second, release the foot to complete the operation, and take out the book.
6) After changing the coil size, please re-adjust the size of each part according to the following steps: No need to adjust the forming block for the same diameter of the coil (1.2) When the wire diameter differs a lot, the forming block must be adjusted. First, loosen the placement panel and adjust the screws, and pan the placement panel outward, then loosen the lifting locking screw of the placing panel, and lower the placing panel through hand wheel 2. Loosen the forming block 1.2 screws. Step on the foot pedal and place the ring between the bending cutting knife and the pressing block, and push the compression block locking screw by hand.(Left forming block 1 is above, right forming block 2 is below).
Supplier: Nanbo, located in China.
Smallest order quantity: 1 piece
Application: Industrial PVC spiral coil binding
Machine series: Binding machine
The binding speed of this machine is 500 cycles to 700 cycles per hour, if this speed meets your binding requirement, then you can take this spiral coil machine directly and use it in your factory. This working speed is high and can help improve your working efficiency, it is worth trying.
This binding machine is made by our own factory, so we can ensure that you can get a high-quality plastic PVC spiral coil binding machine at a relatively competitive offer. You can compare the price from any Chinese supplier, then come back to us.
If you have an interest in these coil crimping pliers, contact us directly.
If you are looking for other models or you just want other equipment to meet your special requirement, please let us know. Then we will help find out a solution.
After you order this machine and don't know how to use it. We will provide a video to show you how to operate. If your machine doesn't work when receiving, just tell us the situation, our professional masters will help you solve it.
Customers always come first in our company. Hope to establish a solid business relationship with you!
