Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic

Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic

Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic
Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic

Large Image :  Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo
Model Number: NB-520YA
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Solid packing
Delivery Time: About 25 days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10,000 pcs per Month
Detailed Product Description
Name: Hot Sale 520mm Max Lamination Width Hydraulic Automatic Laminating Machine Max Laminating Width: 520mm
Max Laminating Thickness: 2mm Max Laminating Speed: 0-15M/min
Max Laminating Temperature: 160℃ Electricity Supply: 220v / 50Hz, 400W
Motor Power: AC 400W Diameter Of Steel Roller: 200mm
Robber Roller Diameter: 150mm Heating Method: Infrared Internal Heating
Heating Power: 3900W Advantage: Durable Quality Laminating Machine
Factory: Nanbo Machinery
High Light:

Hydraulic Roll Laminating Machines

,

520mm Roll Laminating Machines

,

Hydraulic lamination roller machine

Hot Sale 520mm Max Lamination Width Hydraulic Automatic Laminating Machine





NB-520YA Laminating Machine Specifications



Model NB-520YA
Max laminating width 520mm
Max laminating thickness 2mm
Laminating speed 0-15M/Min
Max. heating temperature 160
Display screen Touch screen
Steel roller diameter 200mm
Robber roller diameter 150mm
Heating method Infrared internal heating
Heating power 3900W
Motor Power 400W
Anti-curling function YES
Auto overlap function NO
Auto pull-off function YES
Power supply 220V/50HZ
Machine size

1550*1080*1380mm

Net weight/gross weight 370KG/410KG







Main Feature:



Intelligent temperature control, all heat conduction liner steel bar, infrared internal heating.

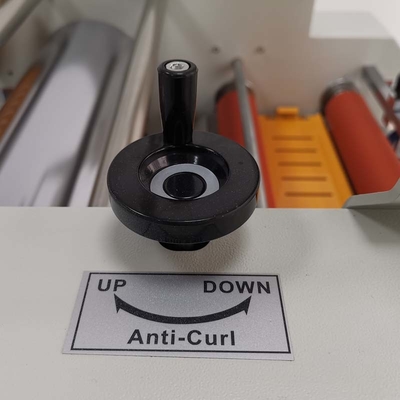

Electric adjustment single side anti-curling function.


Frequency conversion speed regulation, 400W gearbox motor.


Manual pump hydraulic control system, anti-vibration pressure indicator.


The synchronous conveyor belt automatically feeds paper, and the finished product is automatically broken.


Equipped with trimming cutter and dotted cutter.


Equipped with inching foot switch, easy to wear film.

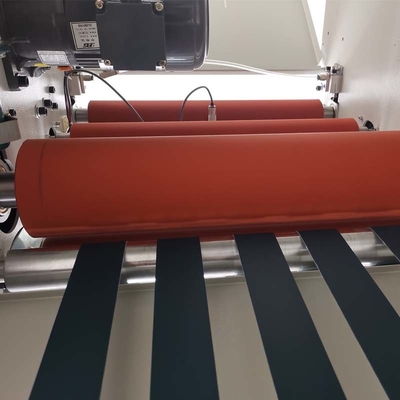

The diameter of the steel roller is 200mm, and the diameter of the lower rubber roller is 150mm.


The rubber roller is made of non-sticky high temperature resistant silicone rubber.



Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 0Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 1Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 2Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 3Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 4Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 5Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 6Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 7Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 8Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 9Automatic Roll Laminating Machines 520mm Max Lamination Width Hydraulic 10





Can this hydraulic automatic laminating machine be used in school?

Yes, no problem. It is not too big, so it can be used at school.



Do you have an available video about this laminating machine?

Of course, we have. We can show you the video.



What's the max laminating width?

It is 635mm.



Which other laminating machines do you have in your factory?

We have various laminators, such as 330LED, XCFM-520B, XCDM-390, NB-520YA.



Can you show me pictures of the laminators before shipping?

Yes, of course. No problem.



What's the price of this laminating machine?

We will offer you with factory price. It is more favorable when your order quantity is larger.



Can I ask for repair service if the machine doesn't work?

Normally, we do careful goods inspection of the machine before shipping. Meanwhile, we provide prompt after-sale service after you purchase the goods from our factory.



Will you offer me a discount price if I purchase many pcs?

Yes, we will. Price is more favorable when your order quantity is big.



Is it possible to ship this FM-650 roller laminator to my agent in Guangzhou?

Yes, we would love to cooperate. For the shipping, we can ship to your agent or directly to you. It depends on your requirement.





►About Our Service:



If you have an interest in this laminating machine, contact us directly.


If you are looking for other models or you just want other equipment to meet your special requirement, please let us know. Then we will help find out a solution.


After you order this book laminator machine and don't know how to use it. We will provide a video to show you how to operate it. If your machine doesn't work when receiving, just tell us the situation, and our professional masters will help you solve it.



Customers always come first in our company. Hope to establish a solid business relationship with you! Contact me now.



What we can do?


We will recommend the most suitable goods based on your specifications. Then competitive prices can be offered.
We will prepare the goods you ordered within 15-20 days. Then ship the goods to your destination.





After you order the roller laminating machine and the production finishes, we will arrange the shipping for you.
Shipping channels you can choose are DHL, FedEx, UPS, TNT or Ocean shipping, etc.
The packing we used, they are normally solid carton boxes or wooden boxes. We will ensure that your goods will be protected very well.





►What we supply:



After-printing book equipment: Double loop wire forming machine, double loop wire binding machine, semi-automatic punching machine, automatic punching machine, double loop wire binding &paper punching machine, single-loop forming spiral & binding machine, plastic spiral coil forming machine, plastic spiral coil binding machine, calendar hanger forming machine, book sewing machine, book folding machine.
Mylar tab lamination machine, glue perfect binding machine, saddle stitching machine, etc.



Binding material: plastic spiral coil, double loop wire, nylon coated wire, Metal Spiral coil. PVC filament, PVC Binding Cover, Calendar Hanger Plastic Binding Comb, Plastic Binding Slider, Plastic Binding Press, Stitching Wire, etc.



Welcome to choose the items you need and look forward to establishing a long-term business relationship with you and your company!



► The fairs we attend are like Canton Fair, the International Printing Technology Exhibition of China(Guangdong), etc. Look forward to seeing you there.
