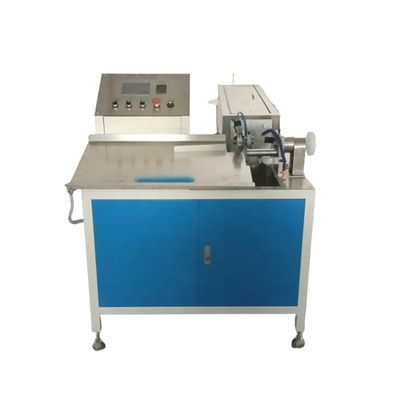

Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding

Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding

Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding
Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding
video play

Large Image :  Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo
Certification: CE
Model Number: NB-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one pc packed in carton, then packed in wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set for 10 days
Detailed Product Description
Model Number: NB-600 Max Forming Size: 2inch(51mm)
Min Forming Size Thickness: 3/16inch(4.8mm) Pneumatic : 4-6pa
Forming Speed: 500-1200pcs/min Machine Weight: 200kg
Power Supply: 220v/50Hz Total Power: 1000w
Machine Dimension: 3x1x1.2m W.A/Wechat: 8613431348359
Quanlity: High Brand: Nanbo
High Light:

6pa Spiral Wire Forming Machine

,

CE PVC Wire Forming Machine

,

4.8mm Plastic Spiral Coil Forming Machine



Min Forming 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding The Material





Item: plastic spiral coil forming machine machine

Max forming size: 2 inch ( 51 mm )

Min forming size: 3/16 inch ( 4.8 mm )

Pneumatic:4-6pa

Forming speed: 500-1200 pcs/min

Machine weight: 200 kg

Power supply: 220v/50Hz

Machine Dimension:3x1x1.2m

Function: Forming plastic spiral coil













Plastic Single Loop Spiral Forming Machine's feature:





Item

Plastic Single Loop Spiral Forming Machine

Max Forming Size

2inch(51mm)

Min Forming Size

3/16inch(4.8mm)

Pneumatic

4-6pa

Forming Speed

500-1200pcs/min

Machine weight

200kg

Power Supply

220v/50Hz

Total Power

1000w

Machine Dimension

3x1x1.2m

Function

Forming plastic spiral coil









Plastic Single Loop Spiral Forming Machine's advantage:



1. PVC,PET ,material wire forming through water tank heating with size mold,then final shaped it by cooling water

2. Automatically feeding the material,make sure the wire forming quality on the process of heating and forming


1. Use dual stainless steel water, power-saving but with great structure

2. Machine Setting and operation by touch-screen ,make it accurate and convenient

3. By Changing forming mold can make different size of wire

4. Max Forming Speed:1200pcs










About Plastic Spiral Coil Forming Machine



We are not only supply many different kinds of binding machines, but also have many different types of binding materials. If you have large amount of plastic wire need to be made in spiral coil, we suggest you can buy our NB-600 Plastic Single Loop Spiral Forming Machine, the Max Forming size is 2 inch, the Forming speed is 500-1200 pcs/min, it works very fast and stable, easy operation and Maintenance.



NB-600 is our hot selling and popular machines, there are many customers order every month. After you place the order we will shipping out machines within 10 days, when you open the machine and donnot know how to start, you can see the paper instructions and operation video. Any more question please call or email us freely, our team will solve the problem for you.















Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.



2.What about shipping date?



Usually take 10 days, but the actual shipping date is depending on your order quantity.



3.What about your quality?



All machines are fully checked before packing. After you received machine, if you have any question please contact us freely, we will reply you immediately.



4. What's the Forming Speed of this machine?



500-1200pcs/min, its very fast and stable





5.Can i buy binding material from your factory?



Yes, we supply many different kinds of binding materials, such as plastic spiral coil, metal spiral coil, double loop wire spiral, plastic comb, PVC cover, PVC slider, Nylon coated wire and so on.









Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 0








Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 1















Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 2



Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 3







Plastic spiral coils feature:





Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 4









Factory and Fair





Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 5



Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 6







Min 3/16 Inch Plastic Binding Wire Forming Machine Automatic Feeding 7
