1ph Automatic Wire Spiral Binding Machine Electric For Notebook

1ph Automatic Wire Spiral Binding Machine Electric For Notebook

1ph Automatic Wire Spiral Binding Machine Electric For Notebook
1ph Automatic Wire Spiral Binding Machine Electric For Notebook
video play

Large Image :  1ph Automatic Wire Spiral Binding Machine Electric For Notebook Get Best Price

Product Details:
Place of Origin: China
Brand Name: Nanbo

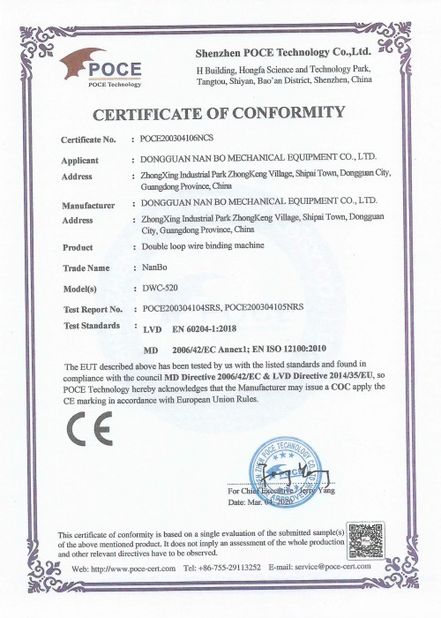

Certification: CE
Model Number: DWC-520A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: one pc packed in carton, then packed in wooden case
Delivery Time: 10 days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 1 set for 10 days
Detailed Product Description
Model Number: DWC-520A Max. Paper Width: 520mm
Min. Paper Width: 75mm Size Of Worktable: 660*300MM (W*d)
Power: Electricity Feeding Mode: Manual
Max. Binding Width: 507mm Working Speed/hour: 800-2000
Machine Dimension: 1000*760*1230mm Brand Name: Nanbo
Weight: 380KG
High Light:

PLC Wire Spiral Binding Machine

,

1ph Wire Spiral Binding Machine

,

5/16 Double Loop Wire Binding Machine

Automatic Wire Spiral Binding Machine 380 KG Electric Wire Binding Machine For Notebook







Double loop wire binding machine Feature:





Item:

Double Loop Wire Book Binding Machine

Feeding Mode:

Manual,Automatic cutting,Insertion&Closing

Wire Specification:

1/4" 5/16“ 3/8” 7/16“ 1/2” 9/16“ 5/8” 3/4“ 7/8”

Wire Pitch:

3:1 2:1

Max Paper Width:

520mm

Max Binding Width:

507mm

Min Paper Width:

75mm

Working Speed:

800-2000 books/hour

Size of worktable:

660X300

Power:

220v/1ph/50Hz/60Hz/0.2kw

Air Compressor(not Included)

1.5kw

Air Pressure:

6-8bar

Main Machine Dimensions:

1000*760*1230mm

Package Dimensions:

1670*1000*1450mm

Net Weight :

400kg



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 0



Double Loop Wire Binding machine advantages:





1: Automatic transmission books,and allow workers to easy operate

2: the actuating element of the machine to switch to new side type to ensure long life and stability

3: Controlled by PLC,Easy to set and adjust

4: machine also includes auto hanger binding attachment

5: machine has auto error reminder function

6: Multifarious language interface design according to customer requested

4: can bind notebook speed up to 800-2000 books per hour

5: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" pitch 3:1 &2:1 with one machine just need different sizes binding mould

6: can bind book width 70-520mm









Double loop wire spool information, Double loop wire spool used for double wire binding machine



Size Pitch Loops per Spool (small)             Loops per Spool (big) Wire thickness Binding Thickness(mm) Binding sheets(80gsm)
1/4"(6.4mm) 3:1 80000 99000 0.7 mm 4.8 45
5/16(7.9mm) 3:1 58000 71700 0.8 mm 6.4 60
3/8"(9.5mm) 3:1 42000 53400 0.8 mm 7.9 75
7/16(11.1mm) 3:1 28000 38600 0.85 mm 9.5 85
1/2“(12.7mm) 3:1 24000 30000 0.9 mm 11.1 100
9/16(14.3mm) 3:1 18000 21500 0.95 mm 12.7 120
5/8"(15.9mm) 2:1 10000 12300 1.1 mm 14.3 135
3/4"(19mm) 2:1 7000 8500 1.15 mm 17.5 165
7/8"(22.2mm) 2:1 4500 6100 1.2 mm 20.6 180
1"(25.4mm) 2:1 3600 4500 1.25 mm 23.8 200
1-1/8"(28.6mm) 2:1 3000 3900 1.3 mm 25.4 230
1-1/4"(31.8mm) 2:1 2000 2600 1.4 mm 28.6 260
1-1/2"(38.1mm) 2:1 1700 2000 1.4 mm 35

320









1ph Automatic Wire Spiral Binding Machine Electric For Notebook 1



This machine was researched&developed on the base of Japanese &South Korea’s advanced technology. It is the best multifunctional binding machine with highest efficiency in China



1: can bind up to 800-2000 book per hour

2. double loop wire diameter 1/4” 5/16” 3/8” 7/16” 1/2” 9/16” 5/8” 3/4” 7/8” pitch 3:1 and 2:1

3. Book Width 70-520mm

4. Auto hanger Attachment

5. Multifarious function

6. Auto error reminder

7. Multifarious language interface design according to customer’s request

8. Automatic transmit books, workers operate it very easily

9. The actuating element of machine to switch a new slide type to ensure machine long life and stability





1ph Automatic Wire Spiral Binding Machine Electric For Notebook 2



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 3



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 4



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 5



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 6



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 7



1ph Automatic Wire Spiral Binding Machine Electric For Notebook 8









Frequent questions:





1. Are you factory or trading company?



We are factory, we always provide high quality and competitive price machine for you, for helping your own better business.



2.What about shipping date?



Usually take 10 days, but the actual shipping date is depending on your order quantity.



3.What about your quality?



All machines are fully checked before packing. After you received machine, if you have any question please contact us freely, we will reply you immediately.



4. What's the working speed of this machine?



800-2000 books/hour, it works very fast, we suggest you can buy one to test the market.





5. What's the wire diameter used for this binding machine?





1/4” 5/16” 3/8” 7/16” 1/2” 9/16”5/8” pitch 3:1 5/8” 3/4” 7/8” pitch 2:1













Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.

Mylar Tab Lamination Machine,Glue Perfect Binding Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger

Plastic Binding Comb

Our company advantages: we can supply after printing all kinds of full binding system:



1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture



double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.



2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil



and binding notebook at the same time



3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.





Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after



you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small



problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us
