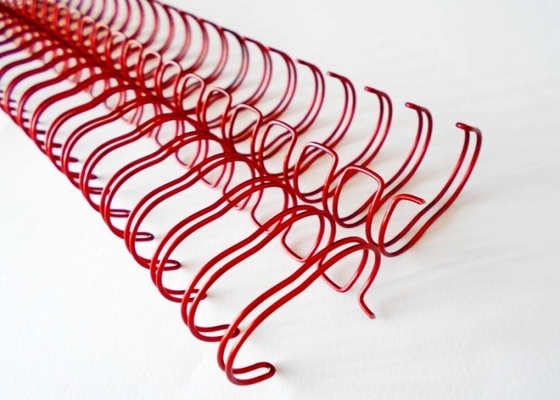

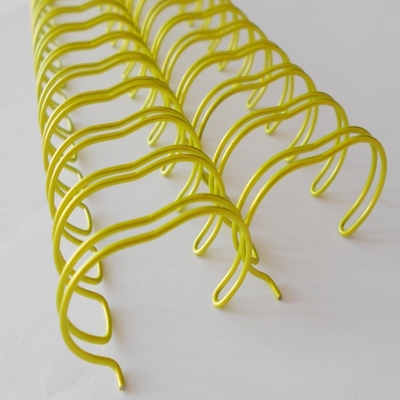

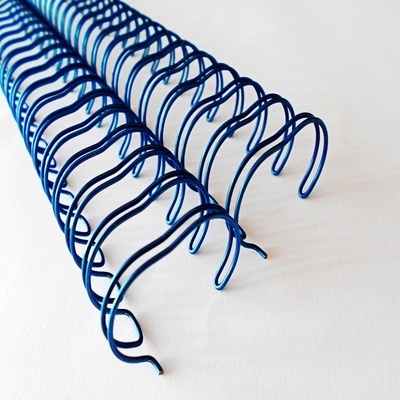

A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop

A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop

A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop
A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop

Large Image :  A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: SGS
Model Number: no
Payment & Shipping Terms:
Minimum Order Quantity: Black and White 100pcs, other color 10000pcs
Price: Negotiate
Packaging Details: 100pcs/box 10 boxes/carton
Delivery Time: 10-15days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 1000 spools per month
Detailed Product Description
Item: A3 A4 A5 Twin Loop Wire Material: Nylon Coated Metal
Color: Basic Color Black And White Usage: Material For Binding Notebook/calendar
Size: 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-1/2" Pitch: 3:1 &2:1
Wire Thickness: 0.7mm 0.8mm 0.9mm 1.0mm 1.1mm 1.15mm 1.2mm 1.3mm 1.4mm 1.5mm Other Color: Red,Blue,Yellow ,Silver,Gold,Green
High Light:

A3 Binding Spiral Wire

,

Twin Loop O Binding Spiral Wire

,

2:1 Double Loop Binding



           Max Size 38mm Pitch 2:1 Double Twin Loop Metal Book Calendar Binding Spiral Wire o



Twin Loop Wire 's advantages:



   1:can be make different processes of twin loop wire, such as ends-binding 90 °,180°,flat end ..



   2: use high quality materials ,after binding the products passed throw cartons test



   3:Any color and pantone color is available





Double Loop Wire Spool.pdf



      Our factory is providing environmental-friendly,safe,delicate pre-cut double loop wire according to clients' requirement



We are paying more attention to the details of double loop wire ,all products are reaching related testing requirements quality first!


Metal Double Loop Wire 's key features:

* wire manufactured on Chinese Made Equipment;

*Not easily occur transformation after binding

*Suitable for automated binding insertion and also semi-automatic binding insertion

*Meet REACH and Rohs standards


 Metal Double Loop Wire 's specification:



Pitch Size Wire Thickness PCS /BOX Box /carton Common Standard American Standard Binding Capacity Paper Qty







3:1

3/16” 0.65mm









100





















10









34loops









32loops

3.5mm 30
1/4” 0.7mm 4.0mm 45
5/16” 0.75mm 5.6mm 60
3/8” 0.8mm 7.0mm 75
7/16” 0.85mm 9.5mm 85
1/2” 0.9mm 11.0mm 100
9/16” 0.95mm 12.7mm 120
5/8” 1.0mm 13.2mm 135









2:1

3/8” 0.8mm









50









23loops







21loops

7.0mm 60
7/16” 0.85mm 9.5mm 70
1/2” 0.9mm 11.0mm 80
9/16” 0.95mm 12.7mm 100
5/8” 1.1mm 13.2mm 135
3/4” 1.15mm 15.0mm 165
7/8” 1.2mm 19.0mm 180
1” 1.25mm 21.0mm 200
  1-1/8” 1.35mm



50

22.5mm 210
1-1/4” 1.4mm 24.0mm 220
1-1/2” 1.5mm 32.1mm 250



Wire-O binding is known by many names: double-loop, double-o, double-wire, Twin Ring Wire and also twin-loop binding. This method uses a continuous hinge of double wire loops to hold book covers and pages together. Graphic designers prefer this method, because it offers a stylish metal finish in a variety of colors. This traditional method of wire binding secures pages, so that they cannot be modified without unbinding the book. Books bound using the Wire-O method tend to lie flat, and sheets can turn 360°, which is ideal for calendars or notebooks. Pair with our Twin Ring Wire Binding Machine that range from low volume to full production floor models. Browse our selection of Wire-O binding supplies today to find 11" wire options, spools, hangers, and much more.

For businesses who need to create professional-quality books, Wire-O binding is the best solution. This kind of binding offers a clean and high-class appeal that is unmatched by any other traditional binding method. Our selection of Wire-O binding supplies includes twin-loop wire spines in an array of pitch options and color varieties. 3:1 pitch Wire-O comes in sizes from ¼ inches up to 9/16 inches, which means it can be used for books from 2 to 120 sheets in size. 2:1 pitch Wire-O is typically available in the larger sizes from 5/8 inches up to 1 1/2 inches, perfect for books from 135 to 280 sheets in size, but we also offer unique 2:1 wires in the full range of sizes, offering more versatility. All sizes are available in bulk, 100 wires per box. Double-loop binding can be easily cut using any standard pair of wire cutters from a hardware store, however, if you need larger quantities of a specific non-standard length, then it may be more cost-effective and convenient to have us custom-cut them for you with our specialized equipment.

Our selection of Wire-O binding supplies includes wire calendar hangers and manual thumb cut punch machines to make crafting easy for everyone. With a pack of 100 wire hangers, you can DIY your own wall-hanging calendars in just a few simple steps, and spend as little as just a couple dollars per calendar.




A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop 0


A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop 1

A3 Max Size 38mm Binding Spiral Wire Pitch 2:1 Metal Double Twin Loop 2


Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger

Plastic Binding Comb
