|Model Number:||APM-420||Item:||Automatic Paper Hole Punching Machine|
|Max Paper Size:||420x380mm||Min Paper Size:||120x104mm|
|Max Paper Thickness:||2mm(standard:1.5mm)||Max Punching Speed:||110 Strokes/min|
|Net Weight:||720kg||Air Pressure:||3-6bar|
420x380mm Automatic Paper Punching Machine,
CE Automatic Spiral Punching Machine
720KG Paper Punching Machine, Automatic Punching Machine For Spiral

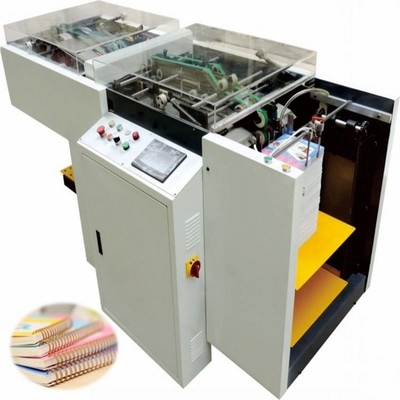

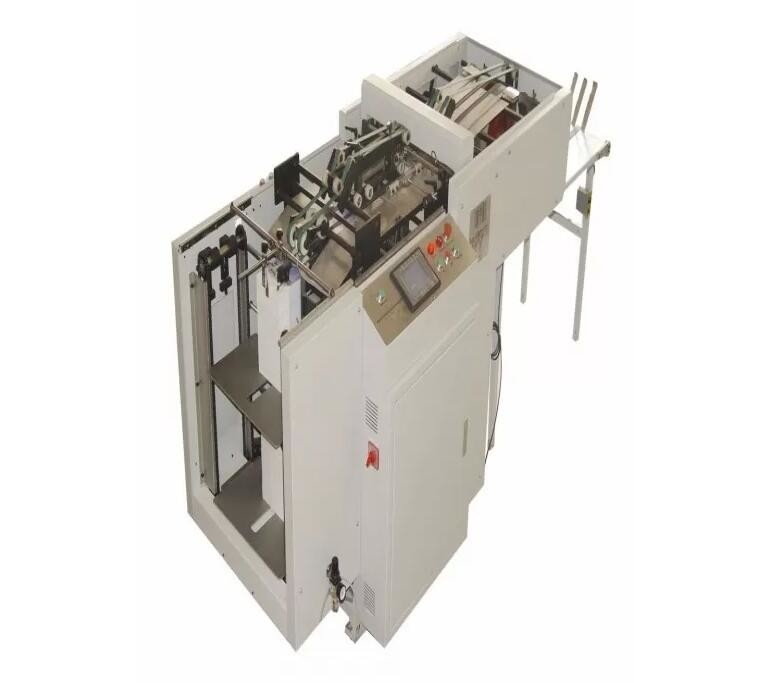

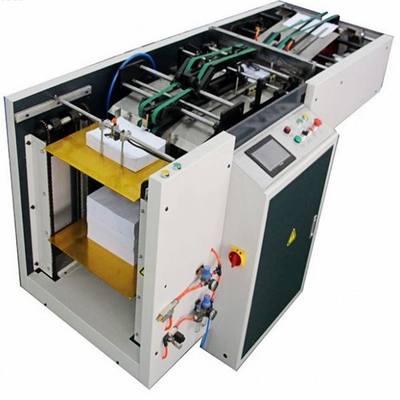

Full automatic Paper Punching Machine can unwind papers by step drive and adjust paper thickness.After absorbing papers ,they can be transferred into the punching die by conveyor belts.after finished the papers from three sides,go to punching.after punching,the papers enter the
Delivery device automatically,are arranged according to the order.the paper sizes and paper margins can be adjusted .we can punch various hole by replacing different shapes punching die.
Automatic Paper Punching Machine 's detailed information:
|Item||Automatic Paper Hole Punching Machine|
|Max Paper Size||420x380mm|
|Min Paper Size||120x104mm|
|Max Paper Thickness||2mm(standard:1.5mm)|
|Max Punching Speed||110 strokes/min|
Automatic High Speed Punching machine Key feature:
1. Can perform sheets for easy tear off
2. Production efficiency is 4 times faster compared to other punching machine
3. Automitic safety protection features
4. Central lubrication system for easy maintenance
5. Paper margin are easily adjustable by operators
6. A full range of dies are available as well as custom dies as customers requrest
7. There are two delivery options
8. Paper weight ranges from 60 gsm to 220 gsm
Full automatic Puching Machine is an equipment specialized in paperboard punching,mainly used for binding hole punching in the Calendar,notebook,exercise book,gray cardboard,PP board ,etc,but it is unavailable in metal and other items
1.Net weight is 720kg
2.We can shipping out goods via express( DHL, fedex, TNT, UPS), air shippment and sea shippment. Its all depends on your order quantity.
3.Fast delivery, machines can be shipped out in 10 days after you placed order.
4.Good packing. All big size machines are packed with wooden case so that they are good for long time transportation.
Our factory mainly produce two party of after printing products:
1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine
2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb
Our company advantages: we can supply after printing all kinds of full binding system:
1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture
double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.
2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil
and binding notebook at the same time
3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.
Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after
you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small
problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us
