Payment & Shipping Terms:
|Model Number:||Double Loop Binding||Usage:||Bind Notebook,calendar Etc Leafloose|
|Raw Material:||Nylon Coated Wire||Coil Pitch:||3:1 &2:1|
|Binding Thickness::||From 4 Mm To 35 Mm||Size:||1/4" 5/16" 3/8" 7/16"1/2"9/16"5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-1/2''|
|Binding Sheets:||From 45 Sheets To 320 Sheets||Wire Diameter::||From 0.7mm To 1.5 Mm|
|Quality:||High||Color:||White, Black, Red, Green, Blue, Yellow And So On|
165 Sheets Wire Spiral Binding Coils,
3/4'' Wire Spiral Binding Coils,
Metallic Double Wire Rings for Binding

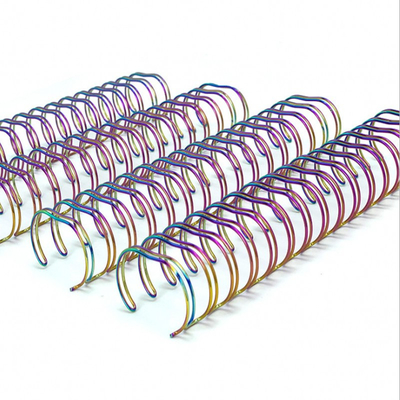

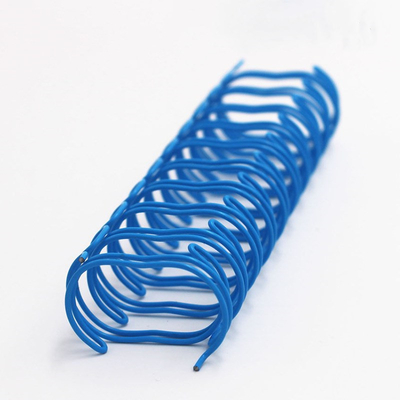

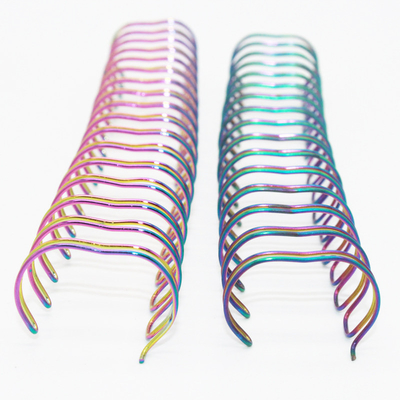

165 Sheets 3/4'' Metallic Double Wire Rings Twin Ring Wire Spiral Binding Coils
High quality metal material is used to produce the double ring wire, you can choose two different making ways: nylon coating or electroplating. nylon coated double loop wire is very popular and hot selling, but electroplated double ring are also very promotional now, both binding wires are made perfectly, so don’t worry about the quality of the goods. Precut double wire ring 100 pcs or 50 pcs in a box, then 10 boxes or 20 boxes in a outside carton.
We supplied double ring wire for many printing factories and stationary bookstores for many years, sample order or mixed order are welcome.
Double loop binding Detailed information:
|Model||Twin Loop Binding, Double loop wire|
|Usage||Bind notebook,calendar etc leafloose|
|raw material||Nylon coated wire|
|coil pitch||3:1 &2:1|
|Binding thickness||from 4mm to 35 mm|
|Size||1/4" 5/16" 3/8" 7/16"1/2"9/16"5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" 1-1/2''|
|Binding sheets||from 45 sheets to 320 sheets|
|wire diameter||from 0.7mm to 1.5 mm|
|color||white, black, red, green, blue, yellow and so on|
Double loop wire specification:
|size||pitch||loop/pc||size||max binding thickness||wire thickness||binding sheets|
|A4||3:1||34 loops||1/4''||4.8 mm||0.7mm||45|
|A4||3:1||34 loops||5/16''||6.4 mm||0.75mm||60|
|A4||3:1||34 loops||3/8''||7.9 mm||0.8mm||75|
|A4||3:1||34 loops||7/16''||9.5 mm||0.85mm||85|
|A4||3:1||34 loops||1/2''||11.1 mm||0.9mm||100|
|A4||3:1||34 loops||9/16''||12.7 mm||0.95mm||120|
|A4||3:1||34 loops||5/8''||14.3 mm||1mm||135|
|A4||2:1||23 loops||5/8''||14.3 mm||1.1mm||135|
|A4||2:1||23 loops||3/4''||17.5 mm||1.15mm||165|
|A4||2:1||23 loops||7/8''||20.6 mm||1.2mm||180|
|A4||2:1||23 loops||1''||23.8 mm||1.25mm||200|
|A4||2:1||23 loops||1-1/8''||25.4 mm||1.3mm||230|
|A4||2:1||23 loops||1-1/4''||28.6 mm||1.4mm||260|
|A4||2:1||23 loops||1-1/2''||35 mm||1.5mm||320|
For businesses who need to create professional-quality books, Wire-O binding is the best solution. This kind of binding offers a clean and high-class appeal that is unmatched by any other traditional binding method. Our selection of Wire-O binding supplies includes twin-loop wire spines in an array of pitch options and color varieties. 3:1 pitch Wire-O comes in sizes from 1/4 inches up to 9/16 inches, which means it can be used for books from 2 to 120 sheets in size. 2:1 pitch Wire-O is typically available in the larger sizes from 5/8 inches up to 1 1/2 inches, perfect for books from 135 to 280 sheets in size, but we also offer unique 2:1 wires in the full range of sizes, offering more versatility. All sizes are available in bulk, 100 wires per box. Double-loop binding can be easily cut using any standard pair of wire cutters from a hardware store, however, if you need larger quantities of a specific non-standard length, then it may be more cost-effective and convenient to have us custom-cut them for you with our specialized equipment.
1.We can shipping out goods via express( DHL, fedex, TNT, UPS), air shippment and sea shippment. Its all depends on your order quantity.
2.Fast delivery, Goods can be shipped out in 10 days after you placed order.
3.Good packing, safe for transportation.
Our factory mainly produce two party of after printing products:
1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine. Mylar Tab Lamination Machine,Glue Perfect Binding Machine
2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger,Plastic Binding Comb
Our company advantages: we can supply after printing all kinds of full binding system:
1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture
double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.
2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil
and binding notebook at the same time
3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.
Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it. after
you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small
problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your company help you to solve.Warmly welcome you call us
PS: We have many different kinds of machines, they are widely used for paper notebook binding, if you have any requrement please kindly email at email@example.com or wechat or whatsapp 008613431348359
Contact Person: Tina Luo
