High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring

High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring

High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring
High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring
video play

Large Image :  High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: CE
Model Number: DWF-1
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine with two wooden boxes(forming machine and spool machine) forming machine wooden box 2.2x0.8x1.4m
Delivery Time: 15-20days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5 sets per month
Detailed Product Description
Keywords: Twin Loop Ring Wire Spool Forming Machine Forming Size Pitch: 3:1 And 2:1
Forming Size: 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4" Forming Speed 3:1: 400-650 Loops/minute
Forming Speed 2:1: 300-500 Loops/minute Machine Dimension: 4.5x1.6x1.8m
Power Requirement: 220v/1ph,50Hz 0.75kw Usage: Making Double Loop Wire
High Light:

wire o forming machine

,

spiral forming machine

                            DWF-1 Automatic Binding Material Nylon Coated Twin Loop Ring Wire Spool Forming Machine

Twin Loop Ring WIre Spool Forming Machine'specification:

Forming Size of Pitch 3:1 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8"
Forming Speed of Pitch 3:1 400-600 loops/min
Forming Size of Pitch 2:1  5/8" 3/4" 7/8" 1" 1-1/8" 1-1/4"  1-1/2"
Forming Speed of Pitch 2:1 200-400loops/min
Power Supply 220v/1ph/50Hz
3:1 overall Machine Dimention  2200x750x1350mm
2:1 overall Machine Dimention 2450x820x1350mm
Additional Parts 1 Spooling Machine
Additional  Parts 2 Cutting Machine
Net Weigth of Forming Machine 300kg
Net Weight of Spooling Machine 100kg
Net Weight of Cutting Machine 60kg
Whatsapp/Wechat/Facebook/Mob 0013712492952



Double Loop Wire Forming Machine's Advantage:

1.Machine can prevent the silk material builds the link or ferrule, and can pull straight the nylon coated wire

2.Machine can processes the nylon coated wire or galvanized wire,delivers throught the conveyor to the second location

3.Machine is loaded with counter,carries on the statistics to the entire production process

4.Replaces certain components in the pitch invariable situation,may change double loop wire conveniently the diameter

5.Double Loop Wire from 1/4" to 1" may use the same spooling machine, double loop wire can use automatic binding machine

Other Advantage:

1)Easy to operate and change forming mould

2)Conveniently Adjust

3)Precise pitch and forming size

4)Automatic Counter for production quantity

5)Spooling Machine and Cutting machine they can change each other


Double Loop Wire 's specification for your reference:


Size Pitch Loops Per Spool(small) Loops per Spool(big) Binding thickness(mm) Binding sheets(80gsm)
3/16(4.8mm) 3:1 116000 135000 3.5 30
1/4"(6.4mm) 3:1 80000 99000 4.8 45
5/16"(7.9mm) 3:1 71700 58000 6.4 60
3/8"(9.5mm) 3:1 53400 42000 7.9 75
7/16"(11.1mm) 3:1 38600 28000 9.5 85
1/2"(12.7mm) 3:1 30000 24000 11.1 100
9/16"(14.3mm) 3:1 21500 18000 12.7 120
5/8(15.9mm) 3:1 12300 15000 14.3 135
5/8"(15.9mm) 2:1 12300 10000 14.3 135
3/4"(19.0mm) 2:1 8500 7000 17.5 165
7/8"(22.2mm) 2:1 6100 4500 20.6 180
1"(25.4mm) 2:1 4500 3600 23.8 200
1-1/8"(28.6mm) 2:1 3900 3000 25.4 230
1-1/4"(31.8mm) 2:1 2600 2000 28.6 260
1-1/2"(38.1mm) 2:1 1500 1200 35.0 320

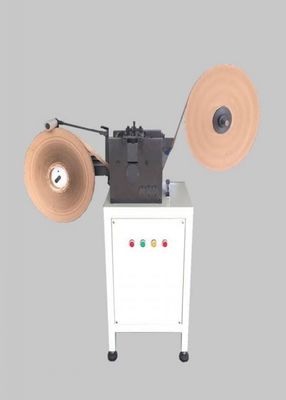

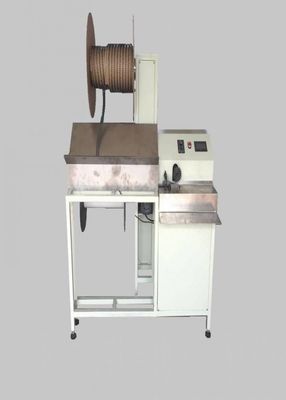

High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring 0

High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring 1
High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring 2
High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring 3High Power Double Loop Wire Forming Machine Nylon Coated Twin Loop Ring 4
