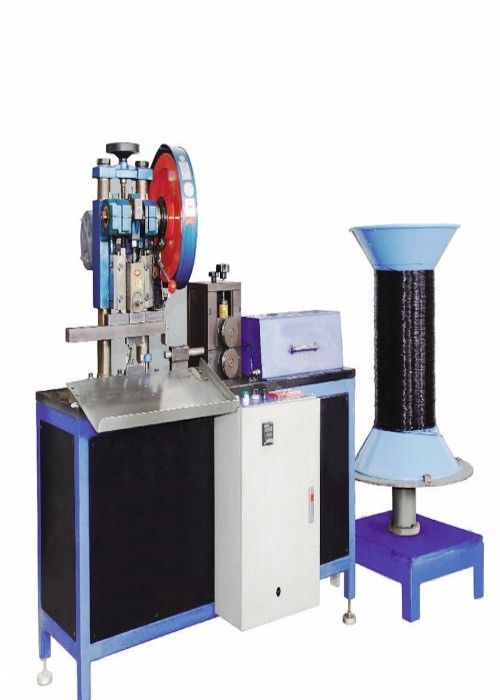

Metal Calendar Wire Hanger Making Machine Touch Screen Setting Nb-500

Metal Calendar Wire Hanger Making Machine Touch Screen Setting Nb-500

Metal Calendar Wire Hanger Making Machine Touch Screen Setting  Nb-500
Metal Calendar Wire Hanger Making Machine Touch Screen Setting  Nb-500
video play

Large Image :  Metal Calendar Wire Hanger Making Machine Touch Screen Setting Nb-500 Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: CE
Model Number: NB-500
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine package into one export wooden box, box size 1.6x0.7x1.5m
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Keywords: Calendar Hook Hanger Bending Machine Max Forming Length: 550mm
Min Forming Length: 80mm Main Machine Dimension: 1.52x0.6x1.4m
Raw Material Loading Frame: 0.8x0.8x1.1m Total Power: 1.6kw
Weight: 300kg Usage: Forming Calendar Hanger
High Light:

hanger hook making machine


cloth hanger making machine

                                   NB-500 Automatic Wire  Metal Calendar Hanger Hook Bending  Machine

Features of Automatic wire coat clothes hanger making machine

1) Output setting, automatic control functions (production to set data automatic stop).
2) Make the body seprated, fission, when using button a machine can be used for production of other products.
3) Send line: mechanical and pneumatic in two ways.
4) Hand pump oil into all lubricating points, filling of lubricating oil is convenient, avoid workers is not afraid of trouble, and lead to accelerated wear and tear parts.
5) The machine is equipped with hand rotation function, effective guarantee test without failure mould, calibration and test more convenient.


Calendar Hook Hanger Bednding  Machine 's advantage:


* Machine can make the steel wire ,nylon coated wire,Galvanizing wire automatic straight ,cutting and forming to be calendar hanger wire .


* Program setting by use touch-screen and PLC ,make it high accuracy and quality.


* With safety device on the machine,make sure safe production


* With high speed puncher,make the machine with fast production speed


* By changing mould can make different size of calendar hanger wire




Metal Calendar Wire Hanger Making Machine Touch Screen Setting  Nb-500 0Metal Calendar Wire Hanger Making Machine Touch Screen Setting  Nb-500 1


Metal Wire Hanger Hook Forming  Machine Specification:

Item Calendar Hanger Wire Forming Machine
Max Forming Length 550mm
Min Forming Length 80mm
Main Machine Dimension 1.52x0.6x1.4m
Raw Material Loading Frame 0.8x0.8x1.1m
Power Supply 220v/1Ph/50Hz or 380V/3Ph/60Hz
Working Speed 800-4200 piece/hour
Net Weight 300kg



Our factory mainly produce two party of after printing products:


1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine, automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.

Mylar Tab Lamination Machine


2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger

Plastic Binding Comb

Our company advantages: we can supply after printing all kinds of full binding system:


1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture


double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.


2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil


and binding notebook at the same time


3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.



Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after


you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small


problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your


company help you to solve.Warmly welcome you call us@008613712492952
