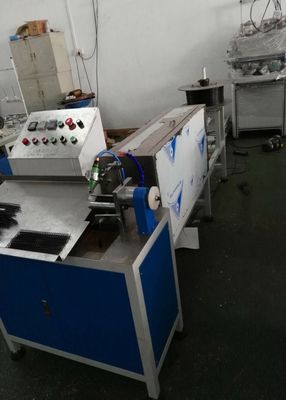

1000w Total Power Pvc Spiral Forming Machine 200kg Min Forming Size 3/16 Inch

1000w Total Power Pvc Spiral Forming Machine 200kg Min Forming Size 3/16 Inch

1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch
1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch
video play

Large Image :  1000w Total Power Pvc Spiral Forming Machine 200kg Min Forming Size 3/16 Inch Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: CE
Model Number: NB-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine package into one wooden export box box size:3.1x1.1x1.3m
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Detailed Product Description
Keywords: Plastic Binding Coil Making Machine Max Forming Size: 2inch
Min Forming Size: 3/16inch Pneumatic: 4-6Pa
Forming Speed: 500-1200pcs/min Power Supply: 220v/50Hz
Total Power: 1000w Machine Weight: 200kg
Machine Dimension: 3x1x1.2m
High Light:

wire forming machine

,

automatic spiral forming machine





                               NB-600 Automatic PVC Plastic Single  Loop Coil Making Machine




PVC Plastic Spiral Forming Machine's advantage

1. PVC,PET ,material wire forming through water tank heating with size mold,then final shaped it by cooling water

2. Automatically feeding the material,make sure the wire forming quality on the process of heating and forming

3. Use dual stainless steel water ,power-saving but with great structure

4. Machine Setting and operation by touch-screen ,make it accurate and convenient

5. By Changing forming mold can make different size of wire

6. Max Forming Speed:1200pcs


Plastic Binding Coil Making Machine Feature:

1> Working speed up to 10000-100000loops/hour
2>  Convenient adjust,easy to operate and change forming mould
3> Touch screen and automatic forming
4> can produce PET and PVC Spiral both
5> All sizes of forming mould with different pitch can be customized



Item  Plastic Binding Coil Making Machine
Max Forming Size 2inch(51mm)
Min Forming Size 3/16inch(4.8mm)
Pneumatic  4-6pa
Forming Speed 500-1200pcs/min
Machine weight 200kg
Power Supply 220v/50Hz
Total Power 1000w
Machine Dimension 3x1x1.2m
Wechat/Whatsapp 008613712492952

Plastic Spiral Coil's specification ,for your reference:


Size
Wire Thickness(mm)
Pitch
Inch mm 5mm(5:1) 6mm 6.35mm(4:1) 8mm 8.47mm(3:1) 10mm 12.7mm(2:1)
1/4 6.4(6mm) 1.3
5/16 7.9(8mm) 1.3
3/8 9.5(10mm) 1.6
7/16 11.1(11mm) 1.6
1/2 12.7(12mm) 1.8
9/16 14.3(14mm) 1.8
5/8 15.9(16mm) 1.8
3/4 19.1(19mm) 2.0
7/8 22.2(22mm) 2.3
1 25.4(25mm) 2.3
1-1/8 28.6(28mm) 2.3
1-1/4 31.8(32mm) 2.6
1-3/8 34.9(35mm) 2.6
1-3/4 44.5(45mm) 3.0
2 50.8(50mm) 3.0




1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch 0

1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch 1

1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch 2

1000w Total Power Pvc Spiral Forming Machine  200kg Min Forming Size 3/16 Inch 3
Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.


Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your

company help you to solve,welcome you call us@008613712492952
