| Keywords: | Single Spiral Wire Coil Forming Machine | Model: | NB-450 |
|---|---|---|---|
| Wire Specification: | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" | Max Binding Thickness: | 20mm |
| Max Binding Width: | 450mm | Min Binding Width: | 100mm |
| Working Speed: | 700-1300 Notebooks/hour | Power Supply: | 220v/1ph/50Hz |
| Machine Dimensions: | 800x1400x1200mm | Machine Weight: | 238kg |
| High Light: | commercial spiral binding machine,spiral comb binding machine |
||

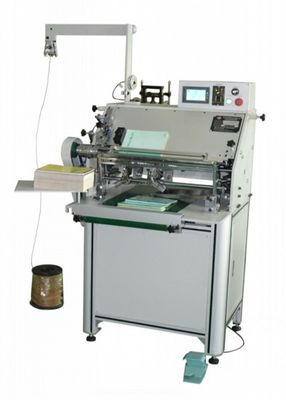

NB-450 Automatic Single Loop Spiral Wire Coil Forming Machine
Single Spiral Wire Coil Forming Machine used abroad binding for notebook,exercise book,hanger calendar,desk calendar,looseleaf etc it can
auto Wire forming spiral,auto book cluster,auto close up,auto book drop and auto book collection.it is a perfect high speed spiral binding machine
Single Spiral Wire Coil Forming Machine is widely used in notebooks,exercise books,Calendars,Desk Calendar and other activities page
binding do the automatic molding machine,automatic string of books,automatically shut off the books automatically ,automatic book collection,is
ideal for high-speed throught the machine.
Single Spiral Wire Coil Forming Machine's Specification:
| Item | Single Spiral Wire Coil Forming Machine |
| Wire Size | 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" |
| Max Binding Thickness | 20mm |
| Max Binding Width | 450mm |
| Min Binding Width | 100mm |
| Working Speed | 700-1300 books/hour |
| Power Supply | 220v/1ph/50Hz |
| Machine Dimensions | 800x1400x1200mm |
| Machine Weight | 238kg |
Single Spiral Wire Coil Forming Machine 's advantages:
* Forming different wires to spiral coil and binding onto the book at the same time
* Through mould and tooth pitch can meet different specification requirement
* Book binding and wire forming spiral coil finished at the same time,convenience and efficiency
* After book binding complete both ends can cut off and close up automatically
* Books auto drop onto the collection tank after binding complete,operator only leads it to the orientation
* Up to 3 seconds per book max .speed
Spiral Wire Binder used abroad binding for notebook,exercise book,hanger calendar
desk calendar ,loose-leaf etc .it can auto wire forming spiral,auto book cluster,auto close up,auto book drop and auto book collection.it is a perfect high speed spiral binding machine
Metal Spiral Coil's specification,for your reference:
| Coil Diameter | Wire Thickness | Max Binding Thickness | Pitch | |
| Inch | mm | mm | mm | mm |
| 1/4 | 6.4 | 0.7 | 3.4 |
5mm (5:1) 6.35mm(4:1) 8.47mm(3:1) 12.7mm(2:1) 6mm 8mm 10mm |
| 5/16 | 7.9 | 0.7 | 4.9 | |
| 3/8 | 9.5 | 0.8 | 6.5 | |
| 7/16 | 11.1 | 0.8 | 8.1 | |
| 1/2 | 12.7 | 0.9 | 9.7 | |
| 9/16 | 14.3 | 0.9 | 11.3 | |
| 5/8 | 15.9 | 1.0 | 12.9 | |
| 3/4 | 19 | 1.0 | 15.1 | |
| 7/8 | 22.2 | 1.1 | 18.2 | |
| 1 | 25.4 | 1.1 | 20.4 | |
| 1-1/8 | 28.6 | 1.2 | 23.6 | |
| 1-1/4 | 31.8 | 1.2 | 26.8 | |
| 1-3/8 | 34.9 | 1.3 | 29.1 | |
| 1-1/2 | 38.1 | 1.3 | 32.1 | |
| 1-3/4 | 44.5 | 1.4 | 38 | |
| 2 | 50.8 | 1.4 | 42.8 | |
Our company advantages: we can supply after printing all kinds of full binding system:
1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture
double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.
2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil
and binding notebook at the same time
3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.
Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after
you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small
problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your
company help you to solve . Welcome you call us @008613712492952
