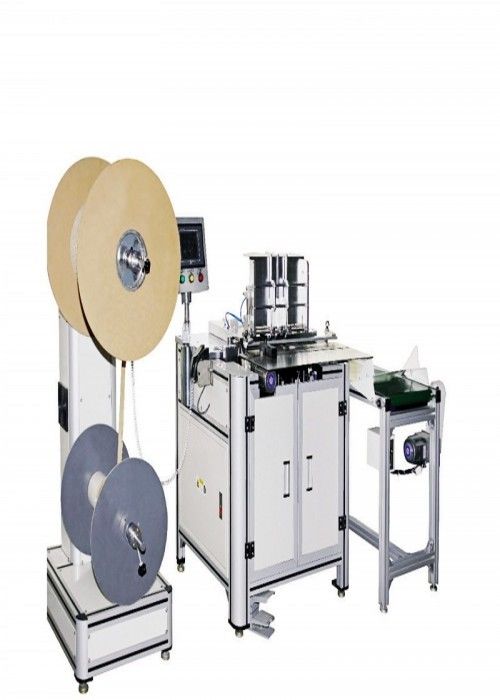

Multifunctional Double Loop Wire Binding Machine Highest Efficiency Binding

Multifunctional Double Loop Wire Binding Machine Highest Efficiency Binding

Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding
Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding

Large Image :  Multifunctional Double Loop Wire Binding Machine Highest Efficiency Binding Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: CE
Model Number: DWC-520
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine package into one export wooden box ,box size:165x100x145cm
Delivery Time: 10-15 days
Payment Terms: T/T , Western Union, MoneyGram
Supply Ability: 10 sets per month
Detailed Product Description
Keywords: Double Loop Wire Spool Binding Machine Model: DWC-520
Binding Wire Specification: 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" Max Paper Width: 520mm
Min Paper Width: 75mm Max Binding Width: 507mm
Working Speed: 800-2000 Books/hour Size Of Worktable: 660x300mm
Machine Power: 220v/1ph/50Hz/60Hz/0.2kw Air Compressor: 1.5kw
Air Pressure: 6-8bar Main Machine Dimension: 1000x760x1230mm
Machine Net Weight: 380kg Dimensions Of Pay-off Unit: 490x760x1230mm
Total Machine Dimension: 1800x760x1230mm
Highlight:

double wire binding machine

,

twin loop binding machine

                 DWC-520 Industrial Semi-automatic Double Loop Wire Spool Binding Machine



DWC-520A Wire Binding Machine.pdf



Double Loop Spiral Binding Machine was researched&developed on the base of Japanese&South Korea's advanced technology is the best multifunctional binding machine with the highest efficiency

Double Loop Wire Binding machine advantages:

1: can bind notebook speed up to 800-2000 books per hour

2: can bind double wire diameter 1/4" 5/16" 3/8" 7/16" 1/2" 9/16" 5/8" 3/4" 7/8" pitch 3:1 &2:1 with one machine just need different sizes binding mould

3:can bind book width 70-520mm

4:machine also includes auto hanger binding attachment

5: machine has auto error reminder function

6:Multifarious language interface design according to customer requested

7:Automatic transmission books,and allow workers to easy operate

8:the actuating element of the machine to switch to new side type to ensure long life and stability

9:Controlled by PLC,Easy to set and adjust

Double Loop Spiral Binding Machine Specifications:

Item: Double Loop  Wire Spool Binding Machine
Feeding Mode: Manual,Automatic cutting,Insertion&Closing
Wire Specification: 1/4" 5/16“ 3/8” 7/16“ 1/2” 9/16“ 5/8” 3/4“ 7/8”
Wire Pitch: 3:1 2:1
Max Paper Width: 520mm
Max Binding Width: 507mm
Min Paper Width: 75mm
Working Speed: 800-2000 books/hour
Size of worktable: 660X300
Power: 220v/1ph/50Hz/60Hz/0.2kw
Air Compressor(not Included) 1.5kw
Air Pressure: 6-8bar
Main Machine Dimensions: 1000*760*1230mm
Package Dimensions: 1670*1000*1450mm
Net Weight : 400kg



Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding 0



Double Loop Wire Spool 's specification,for double loop wire spool binding machine reference



Size Pitch Loops Per Spool(small) Loops per Spool(big) Binding thickness(mm) Binding sheets(80gsm)
3/16”(4.8mm) 3:1 116000 135000 3.5 30
1/4"(6.4mm) 3:1 80000 99000 4.8 45
5/16"(7.9mm) 3:1 71700 58000 6.4 60
3/8"(9.5mm) 3:1 53400 42000 7.9 75
7/16"(11.1mm) 3:1 38600 28000 9.5 85
1/2"(12.7mm) 3:1 30000 24000 11.1 100
9/16"(14.3mm) 3:1 21500 18000 12.7 120
5/8”(15.9mm) 3:1 12300 15000 14.3 135
5/8"(15.9mm) 2:1 12300 10000 14.3 135
3/4"(19.0mm) 2:1 8500 7000 17.5 165
7/8"(22.2mm) 2:1 6100 4500 20.6 180
1"(25.4mm) 2:1 4500 3600 23.8 200
1-1/8"(28.6mm) 2:1 3900 3000 25.4 230







Our factory mainly produce two party of after printing products:



1:After-printing book equipment:double loop wire forming machine,double loop wire binding machine,semi-automatic punching machine,



automatic punching machine,double loop wire binding &paper punching machine,Single loop forming spiral&binding machine,plastic spiral coil



forming machine,plastic spiral coil binding machine,calendar hanger forming machine,book sewing machine,book folding machine.



Mylar Tab Lamination Machine



2:Binding material: plastic spiral coil,double loop wire,nylon coated wire,Metal Spiral Coil .PVC filament, PVC Binding Cover,Calendar Hanger



Plastic Binding Comb





Warmly Welcome you call us@008613712492952



   Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding 1Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding 2Multifunctional  Double Loop Wire Binding Machine Highest Efficiency Binding 3
