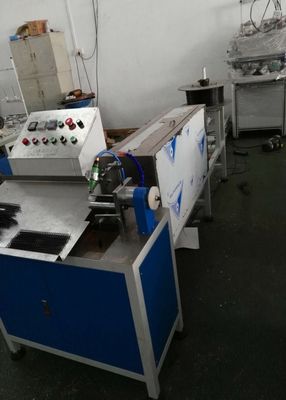

High Accurate Pvc Spiral Forming Machine PLC Controlled Touch Screen Operation

High Accurate Pvc Spiral Forming Machine PLC Controlled Touch Screen Operation

High Accurate Pvc Spiral Forming Machine PLC Controlled  Touch Screen Operation
High Accurate Pvc Spiral Forming Machine PLC Controlled  Touch Screen Operation
video play

Large Image :  High Accurate Pvc Spiral Forming Machine PLC Controlled Touch Screen Operation Get Best Price

Product Details:
Place of Origin: China
Brand Name: NanBo
Certification: CE
Model Number: NB-600
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiate
Packaging Details: one machine package into one wooden export box box size:3.1x1.1x1.3m
Delivery Time: 10-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Detailed Product Description
Keywords: Plastic Spiral Coil Forming Machine Max Forming Size: 2inch
Min Forming Size: 3/16inch Pneumatic: 4-6Pa
Forming Speed: 500-1200pcs/min Power Supply: 220v/50Hz
Total Power: 1000w Machine Weight: 200kg
Machine Dimension: 3x1x1.2m
High Light:

spiral forming machine

,

automatic spiral forming machine

                               NB-600 Automatic PVC Plastic Spiral Coil Making Forming Machine


The machine can automatic feed the book, automatic punch one book several times, automatic adjust the hole, automatic bind, automatic form the spiral, automatic collect the book.

1. The machine only require one operator
2. High quality punch mould, it can punch at most 3~6mm, which can also add oil automatically. One mould has two sides with two sizes of the hole, which makes the mould can be used for 3~5 times of life than normal mould.
3. It only require one minute to change the mould
4. The machine can positioning the hole automatically.
5. Automatic remind the malfunction.

PVC Plastic Spiral Forming Machine's advantage
1. PVC,PET ,material wire forming through water tank heating with size mold,then final shaped it by cooling water
2. Automatically feeding the material,make sure the wire forming quality on the process of heating and forming
3. Use dual stainless steel water ,power-saving but with great structure
4. Machine Setting and operation by touch-screen ,make it accurate and convenient
5. By Changing forming mold can make different size of wire
6. Max Forming Speed:1200pcs

ItemPlastic Spiral Coil Forming Machine
Max Forming Size2inch(51mm)
Min Forming Size3/16inch(4.8mm)
Pneumatic 4-6pa
Forming Speed500-1200pcs/min
Machine weight200kg
Power Supply220v/50Hz
Total Power1000w
Machine Dimension3x1x1.2m
Wechat/Whatsapp008613712492952


Plastic Spiral Coil's specification ,for your reference:


Size


Wire Thickness(mm)

Pitch
Inchmm5mm(5:1) 6mm 6.35mm(4:1) 8mm 8.47mm(3:1) 10mm 12.7mm(2:1)
1/46.4(6mm)1.3
5/167.9(8mm)1.3
3/89.5(10mm)1.6
7/1611.1(11mm)1.6
1/212.7(12mm)1.8
9/1614.3(14mm)1.8
5/815.9(16mm)1.8
3/419.1(19mm)2.0
7/822.2(22mm)2.3
125.4(25mm)2.3
1-1/828.6(28mm)2.3
1-1/431.8(32mm)2.6
1-3/834.9(35mm)2.6
1-3/444.5(45mm)3.0
250.8(50mm)3.0



High Accurate Pvc Spiral Forming Machine PLC Controlled  Touch Screen Operation 0

High Accurate Pvc Spiral Forming Machine PLC Controlled  Touch Screen Operation 1


High Accurate Pvc Spiral Forming Machine PLC Controlled  Touch Screen Operation 2
Our company advantages: we can supply after printing all kinds of full binding system:

1: first choose binding use double loop wire,our factory manufacture double loop wire forming machine and also manufacture

double loop wire,after you bought double wire binding machine from us,if you also buy double loop wire from us. the double loop wire can smoothly bind by our double wire binding machine,they can work and cooperate very successfully.

2: second choose binding use metal single spiral coil,it is more easy we have one machine forming metal single spiral coil

and binding notebook at the same time

3:third choose binding use plastic spiral coil,also very ok,we can manufacture plastic spiral coil forming machine and also plastic spiral coil binding machine.


Regards to our service:After you bought machine from us,if machine has any problem we can help you to solve it.firstly after

you bought machine we will send a instruction book to tell you how to fix machine and operate the machine.if you have small

problem with machine tell us,we take a vidoe to show you how to solve,if big problem you can not deal with it,we will send master to your

company help you to solve,welcome you call us@008613712492952
